H&G Mould Chart

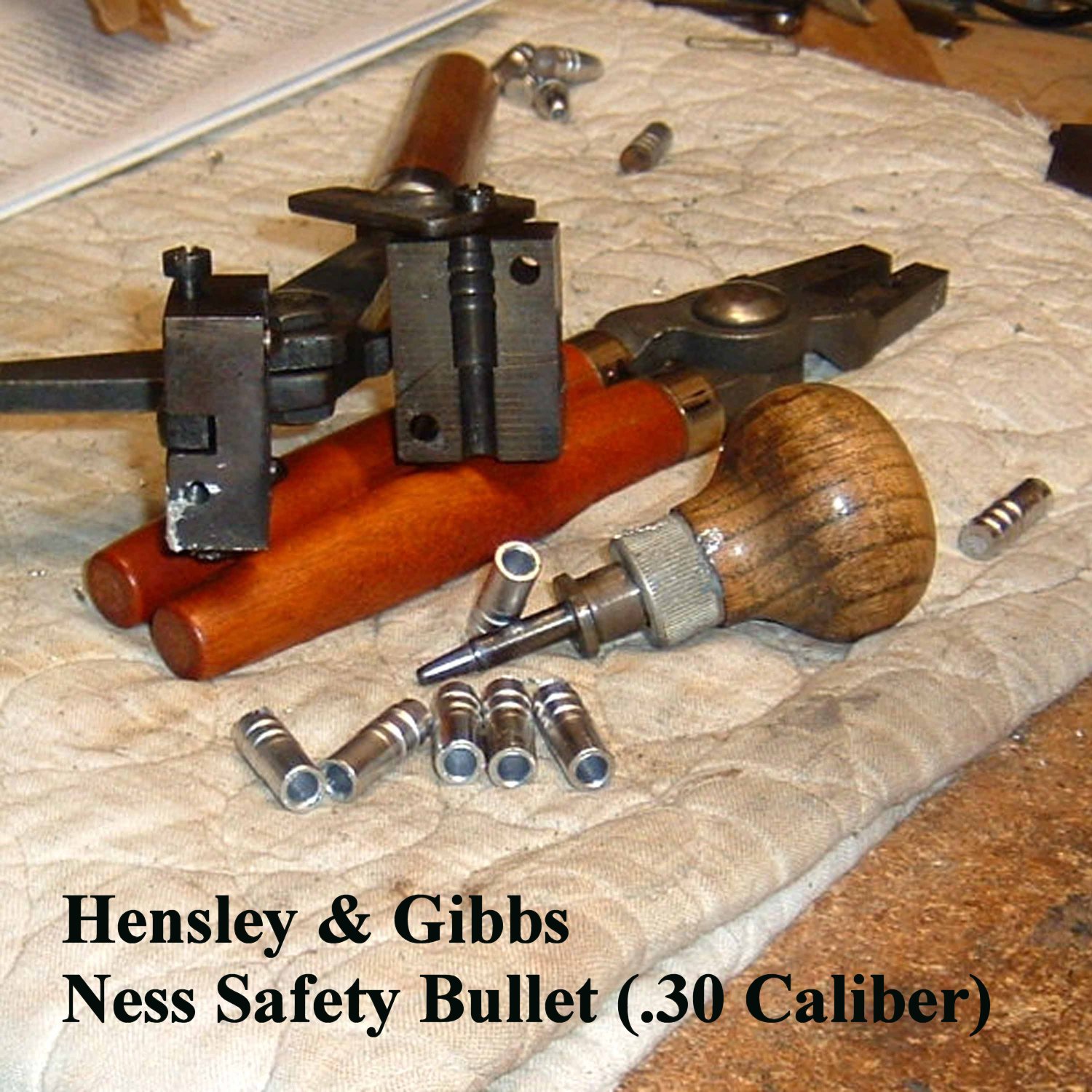

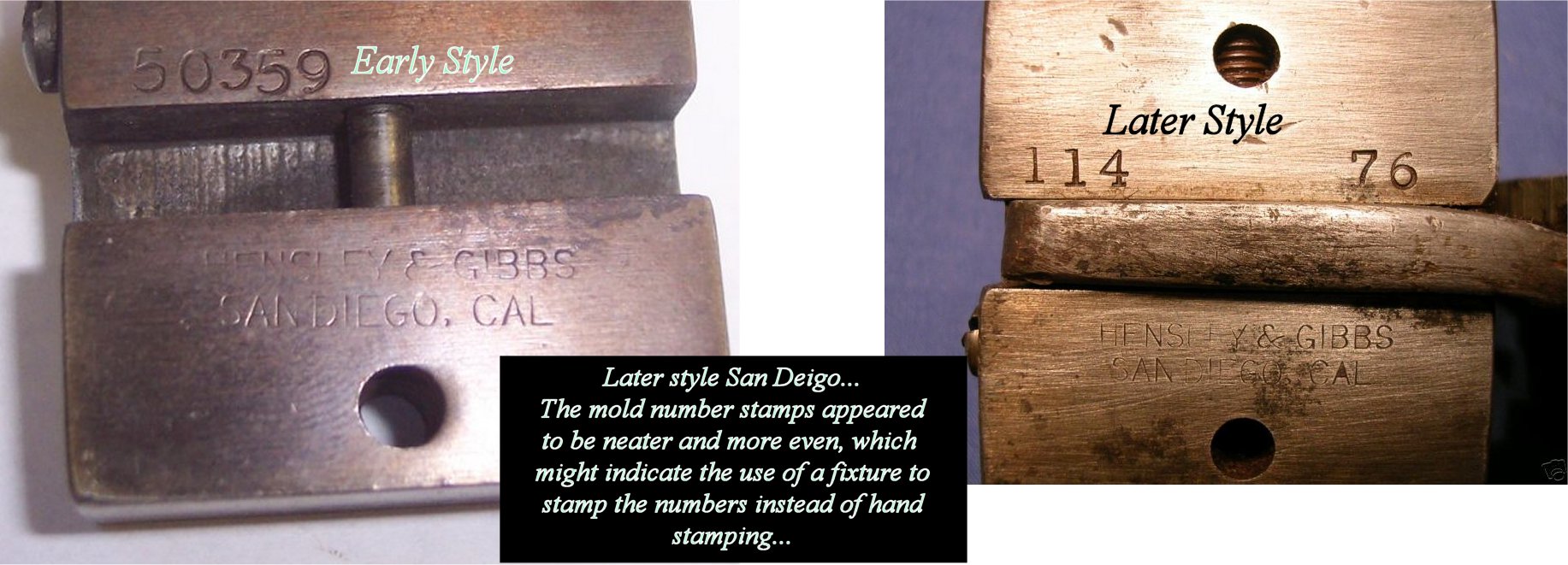

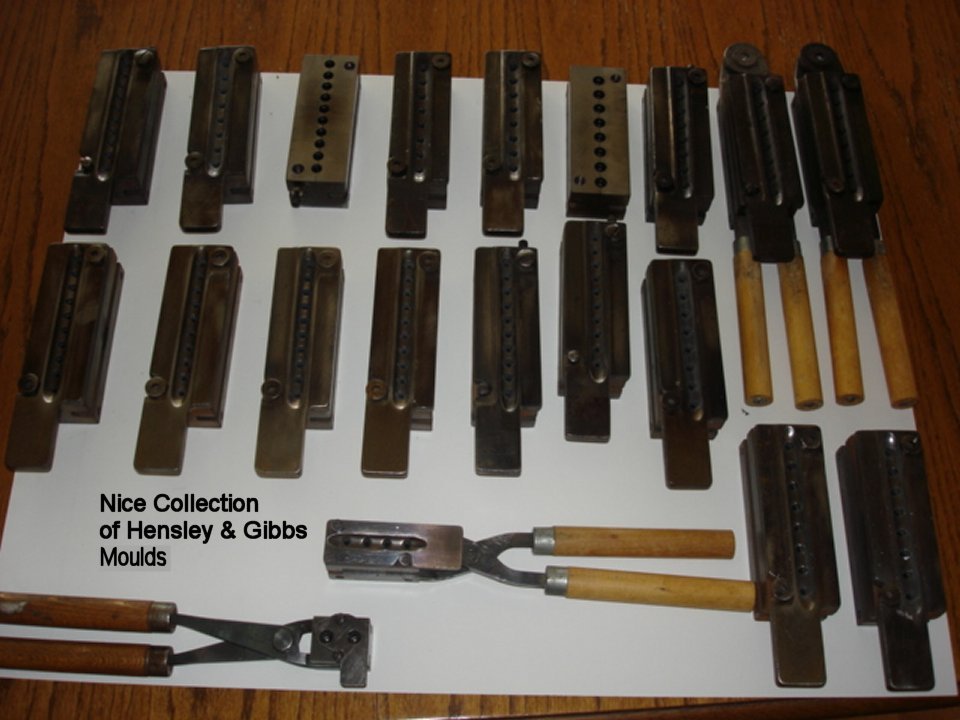

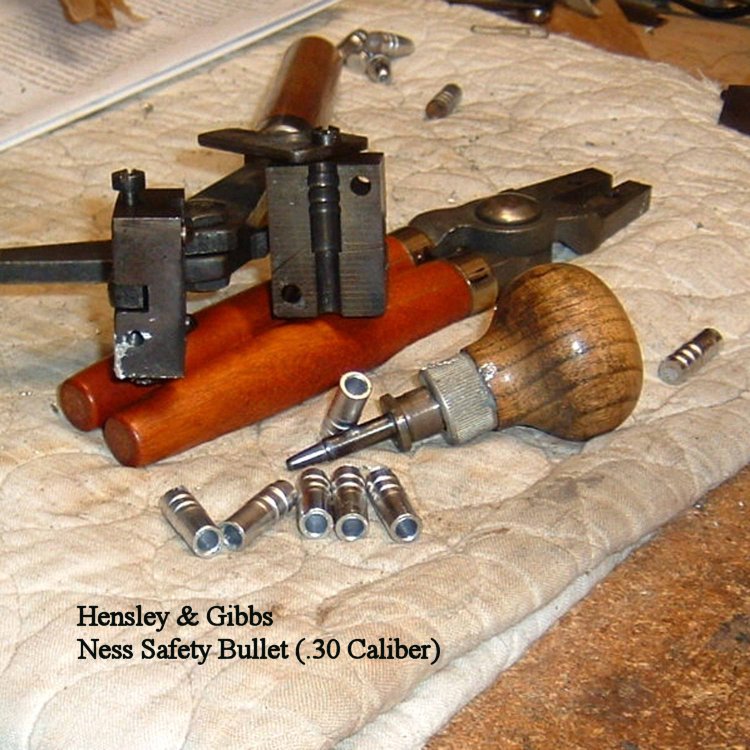

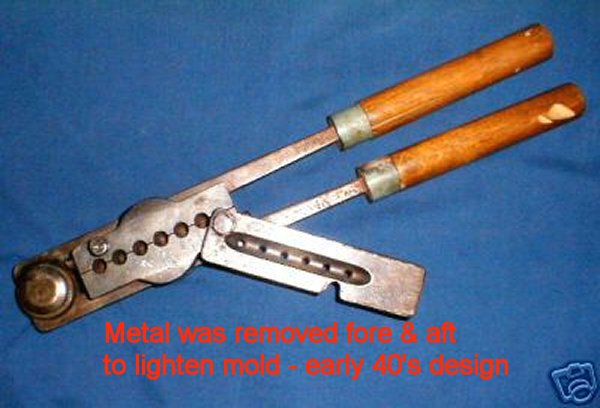

Notes: If a mould number is a blue hyperlink, then I have a picture of the mould. Photos are primarily in the “Mould Number” column, many have two or more photos, the other photos are in the Weight/Grains column or the diameter column.  Look for a blue hyperlink. The Type & Comments column all link to the same page. I am always looking for new photos.  Please contact me via email if you have a photo you would like to share.  My email address is at the bottom of this page. *Warning to eBay Sellers* * Tips for eBay Sellers * George A. Hensley’s Home San Diego, CA October 2009 (Click Thumbnails for larger Photo) New additions are in BOLD –    Moulds:  309 49 314 30 503SX 54 107 A [Click!] Large Photos of #68   68 (1)    68 (2) 68 (3)     [Click!] Ness Safety Bullet Small Photo Larger Photo Nice Collection of Hensley & Gibbs Moulds Information: The Hensley & Gibbs Factory Ledger (Numerical List of Mould Numbers from #1 to #938) MS Word (Doc) HTML Format Frequently Asked Questions [FAQ] The Meaning of “George A. Hensley” & “Hensley & Gibbs” How to Properly Clean a Bullet Mould – ** NEW 12/24/2009 ** Notes on Mould Number ~50~ Letter from Wayne Gibbs on history of Hensley & Gibbs Wayne Gibbs on the Mould Numbering Scheme (Still in Development) An Invoice of a Late Production Mould (1995) Timeline Chart of Hensley & Gibbs (Warning ! Large File + 4.0 MB) Article on Damage to Hensley & Gibbs Bullet Moulds An early depression era (~1936-1939~) 4 cavity Mould on a two cavity block Magazine Article on Hensley & Gibbs (May 1968) [.pdf file] Article on Peerless Bullet Moulds & GEO. A. HENSLEY – 01.24.07 (In progress) Article from San Diego Journal on George A. Henlsey from 1948 (.pdf file) Tools to Help Identify Moulds: Hensley & Gibbs Autocast Blocks vs. Hand Cast Blocks Pot Belly Mould (Early H&G Design) What those numbers on the side of the mould mean Moulds Marked “Geo. A. Hensley” San Diego CA – Early Style ~1933~ to ~1939~ Moulds Marked “Geo. A. Hensley” San Diego CA – Post 1939 Style Moulds Marked “Hensley & Gibbs” San Diego CA Early vs. Late Style Markings – San Diego CA Moulds Marked “Hensley & Gibbs” Murphy OR – Early Style Moulds Marked “Hensley & Gibbs” Murphy OR – Mid Life Style Moulds Marked “Hensley & Gibbs” Murphy OR – Final Style George A. Hensley & Hensley & Gibbs Handles – The evolution of their design A brief note on handles & mould blocks – Read this first Two Cavity Handles – Coming Soon Four Cavity Handles – The Thick & Thin – 05/03/2007 Six Cavity Handles– Coming Soon 8 & 10 Cavity Handles– Coming Soon Courtesy of Ron Calhoun: Photo of H&G Moulds in Production Photo of H&G Bullet Board @ H&G Facility Circa 1970 Enlargement of Above Photo Mould Values eBay Auction Activity From March 07, 2005 – October 16, 2006 (Best Viewed with Microsoft Internet Explorer) Original H&G Price List from early 1990’s The Catalogs (in .PDF format): The George A. Hensley Catalog – San Diego, CA – (2 Pages) The George A. Hensley Instructions – San Diego, CA –  (2 Pages) An Early (dated 1940) Geo. A. Hensley Catalog – San Diego CA (Good Photos of Rifle Moulds) The Early Hensley & Gibbs Instructions – San Diego, CA – (2 Pages) The Early Hensley & Gibbs Catalog – San Diego, CA 1960’s Catalog – Murphy, Oregon 1975 Dated Catalog – Murphy, Oregon – 6 Pages 1983 Dated Catalog – Murphy, Oregon – 9 Pages 1987 Dated Booklet – Murphy, Oregon – 20 Pages 1990 Dated Catalog – Murphy, Oregon – 10 Pages 1994 Dated Catalog – Murphy, Oregon – 15 Pages
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments

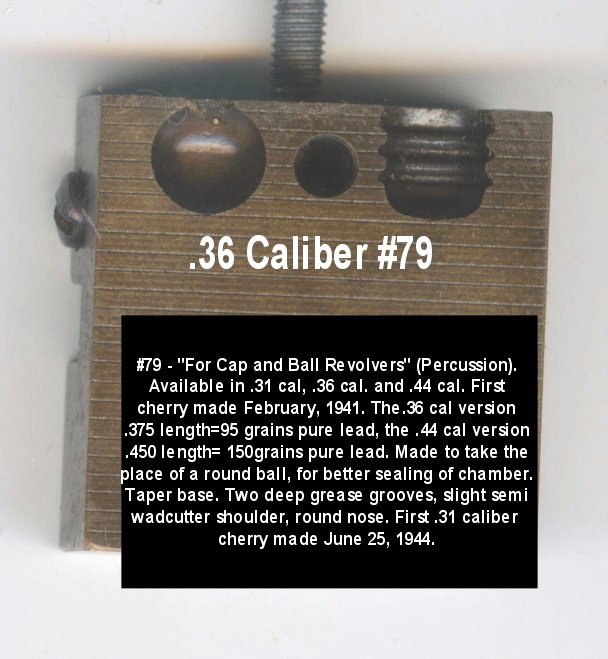

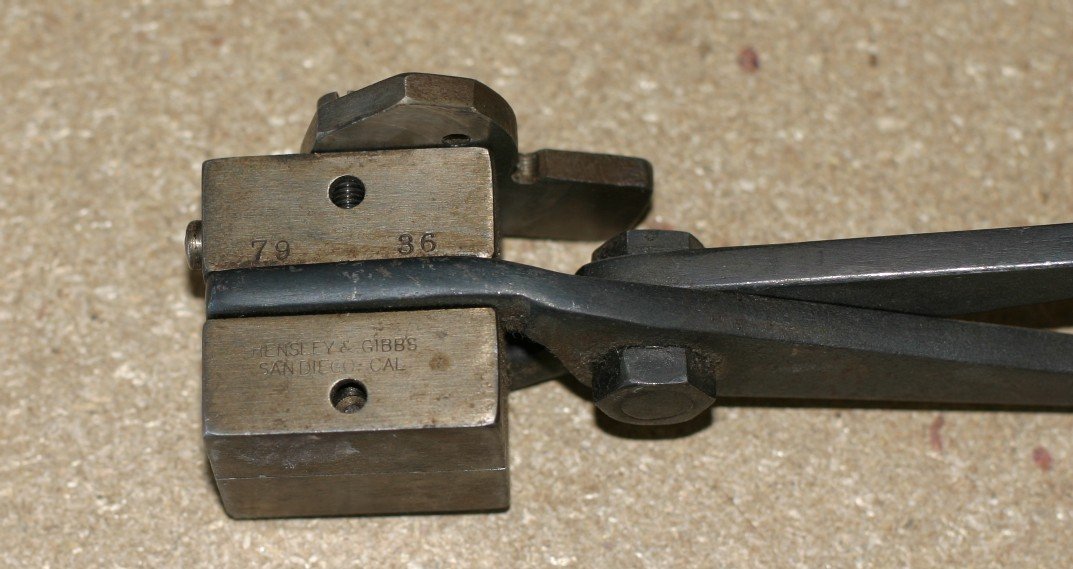

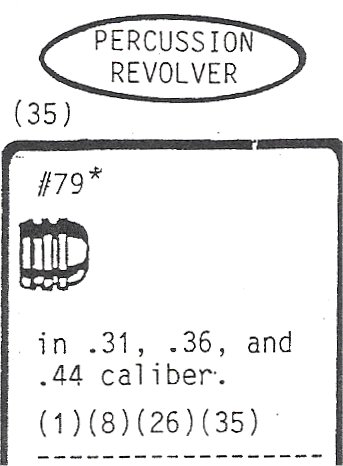

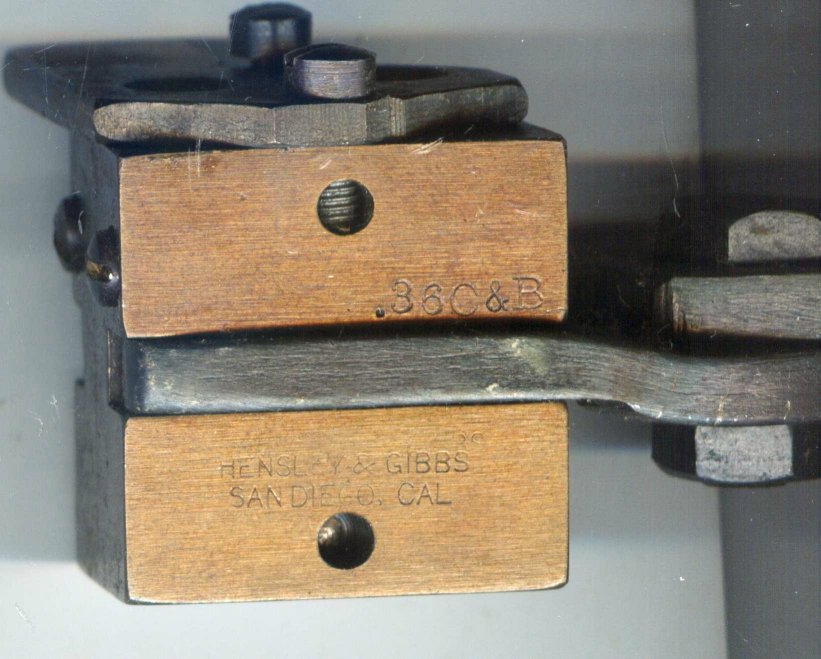

.31,.36. & .44		as cast	as cast	N/A	79 Pic 2		For Blackpowder Revolvers (Cap & Ball)

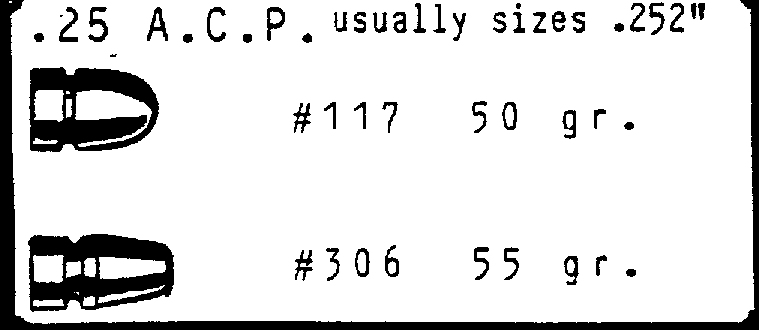

25 ACP		.252	50	PB	117		RGG
			55	PB	306		RGG;SM

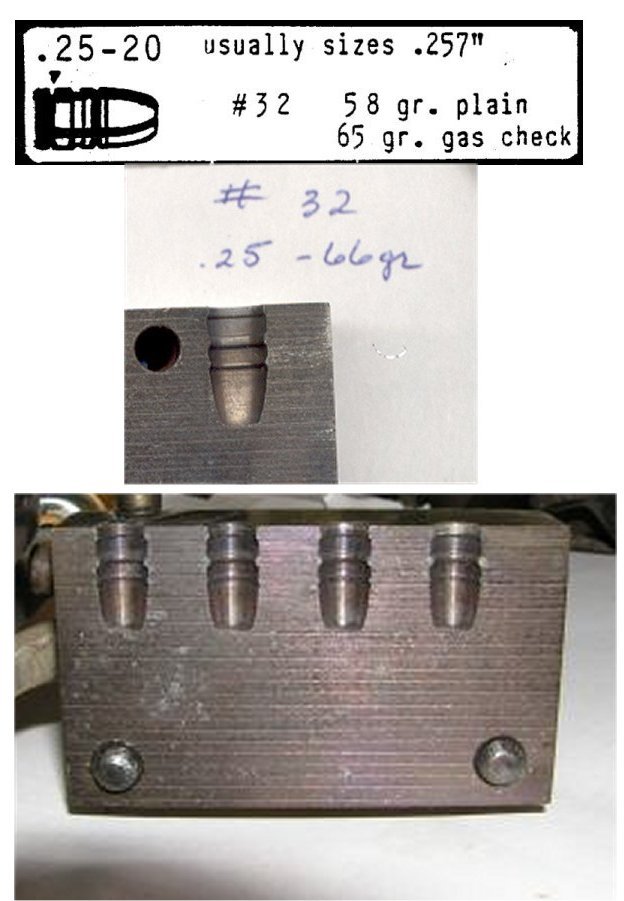

25-20		.257	58		32GC		SGG;OCG;MM;GC

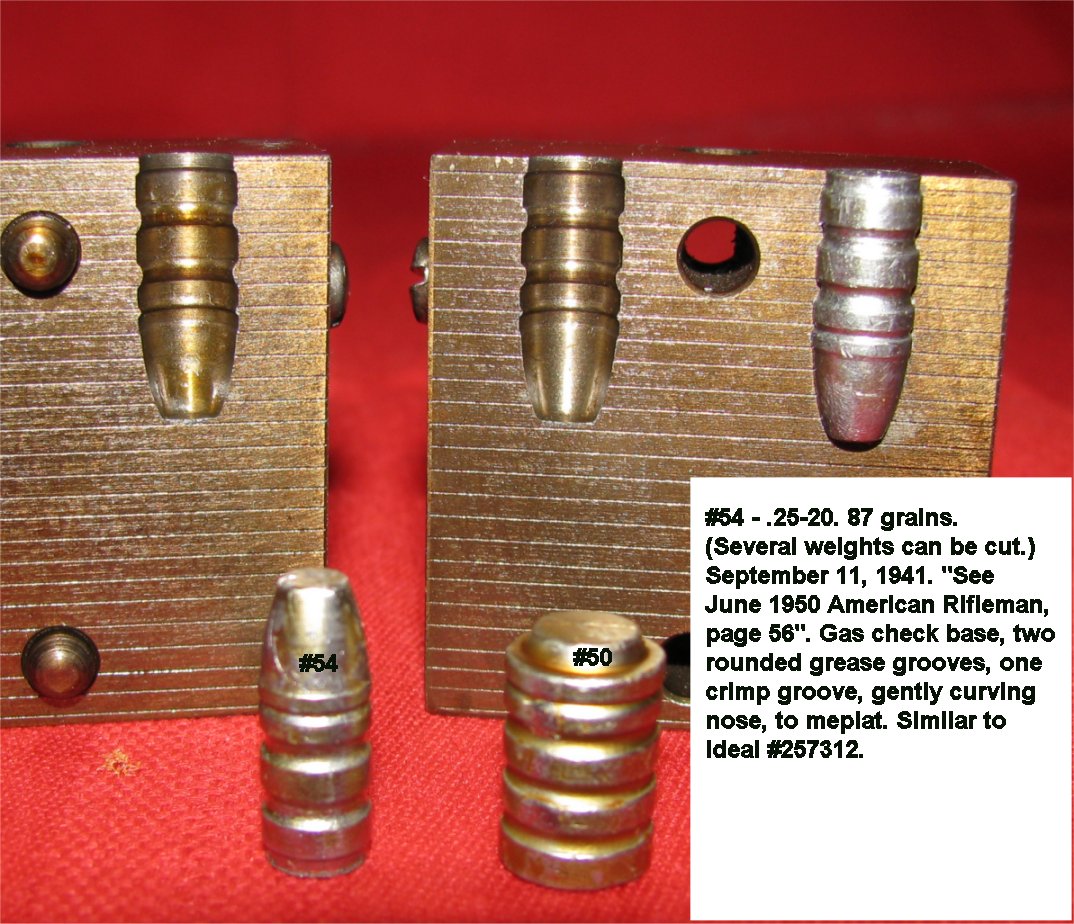

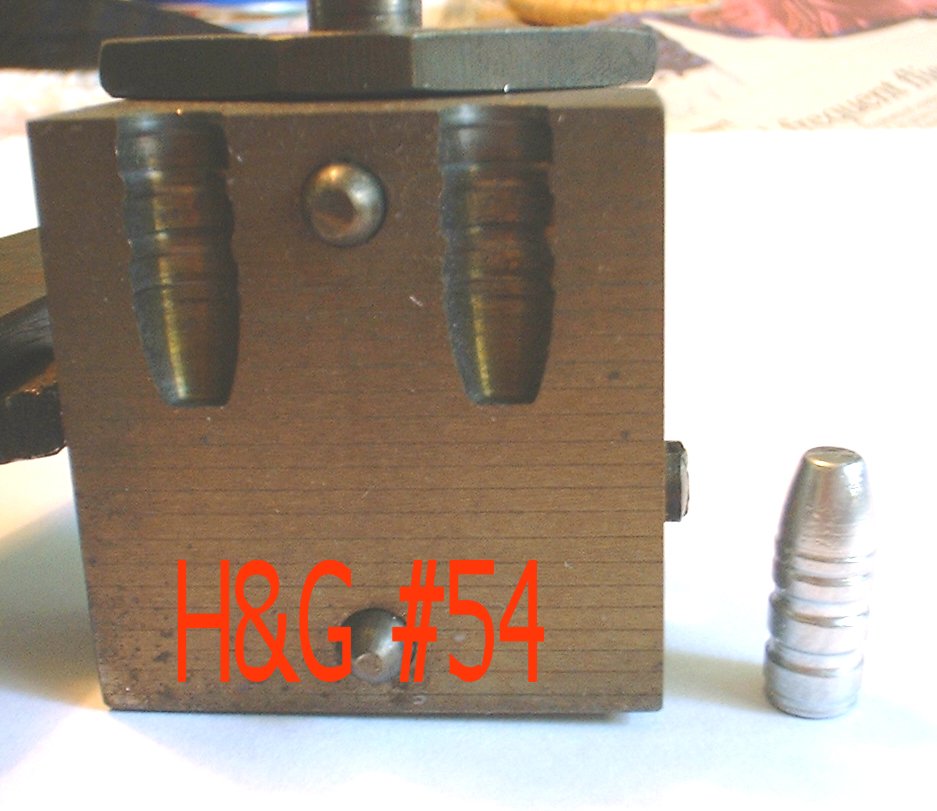

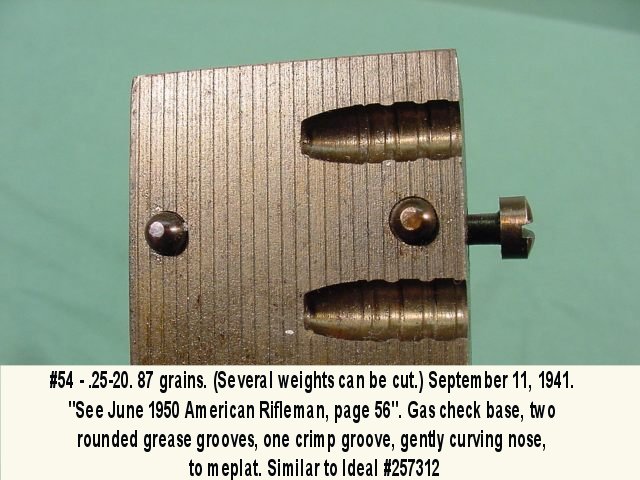

		.257	87	GC	54		See Photo for details
		.257	65		32		SGG;OCG;MM
7MM Nambu		.280	60	PB	134		RGG;OCG

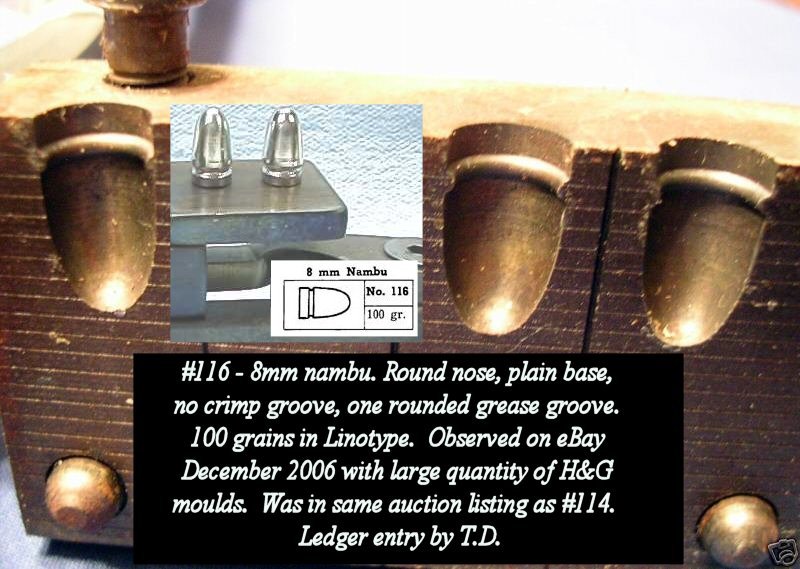

8MM Nambu		.323,.321	100	PB	116		RGG
8mm Lebel Revolver		.323	125	PB	226		RGG,OCG;NDB;SM
30 Luger		.310	90	PB	93		SGG;MM
		.310	92	PB	113		RGG

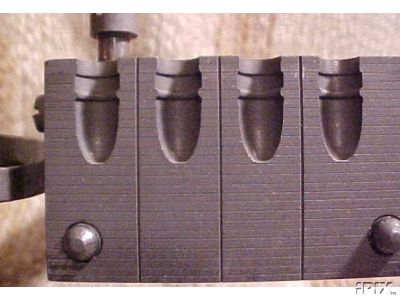

30 M1 CARBINE		.308	113	PB	250		RGG;GC BASE

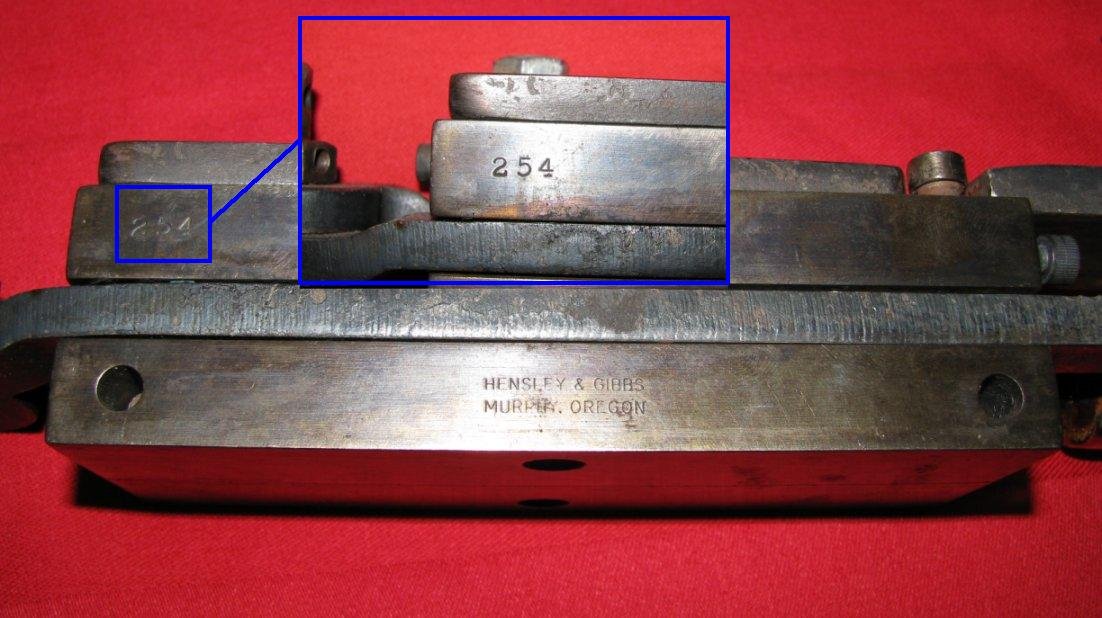

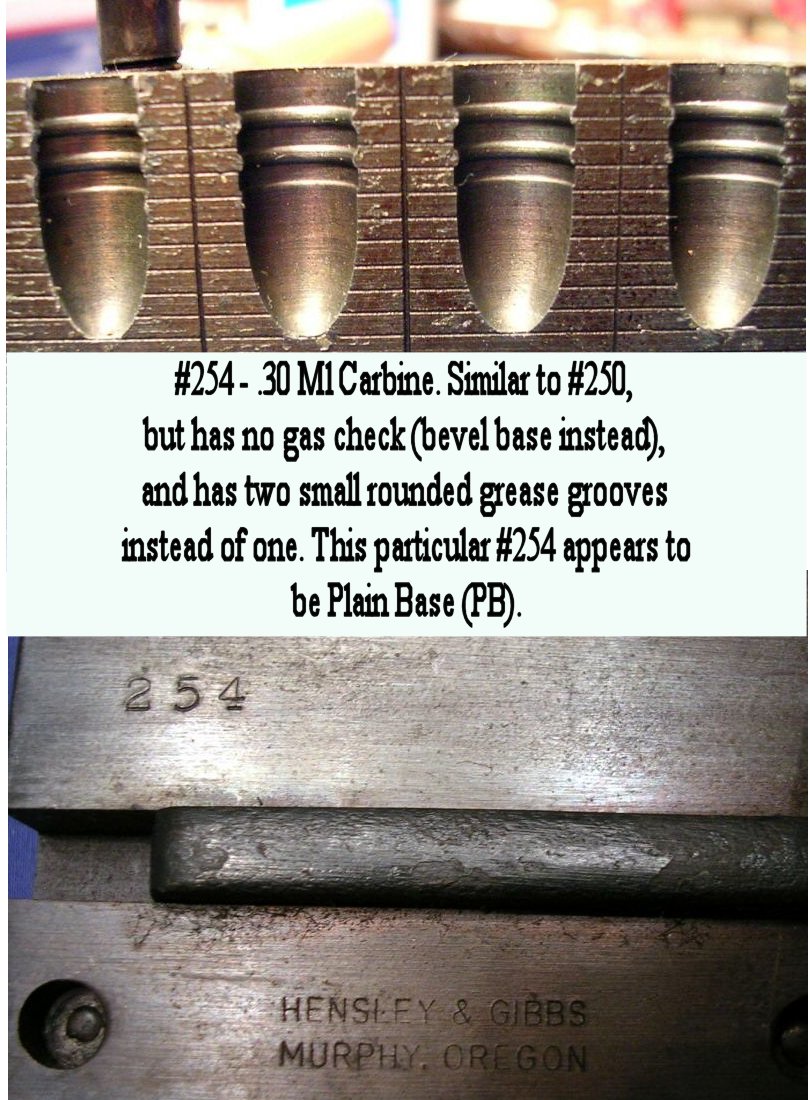

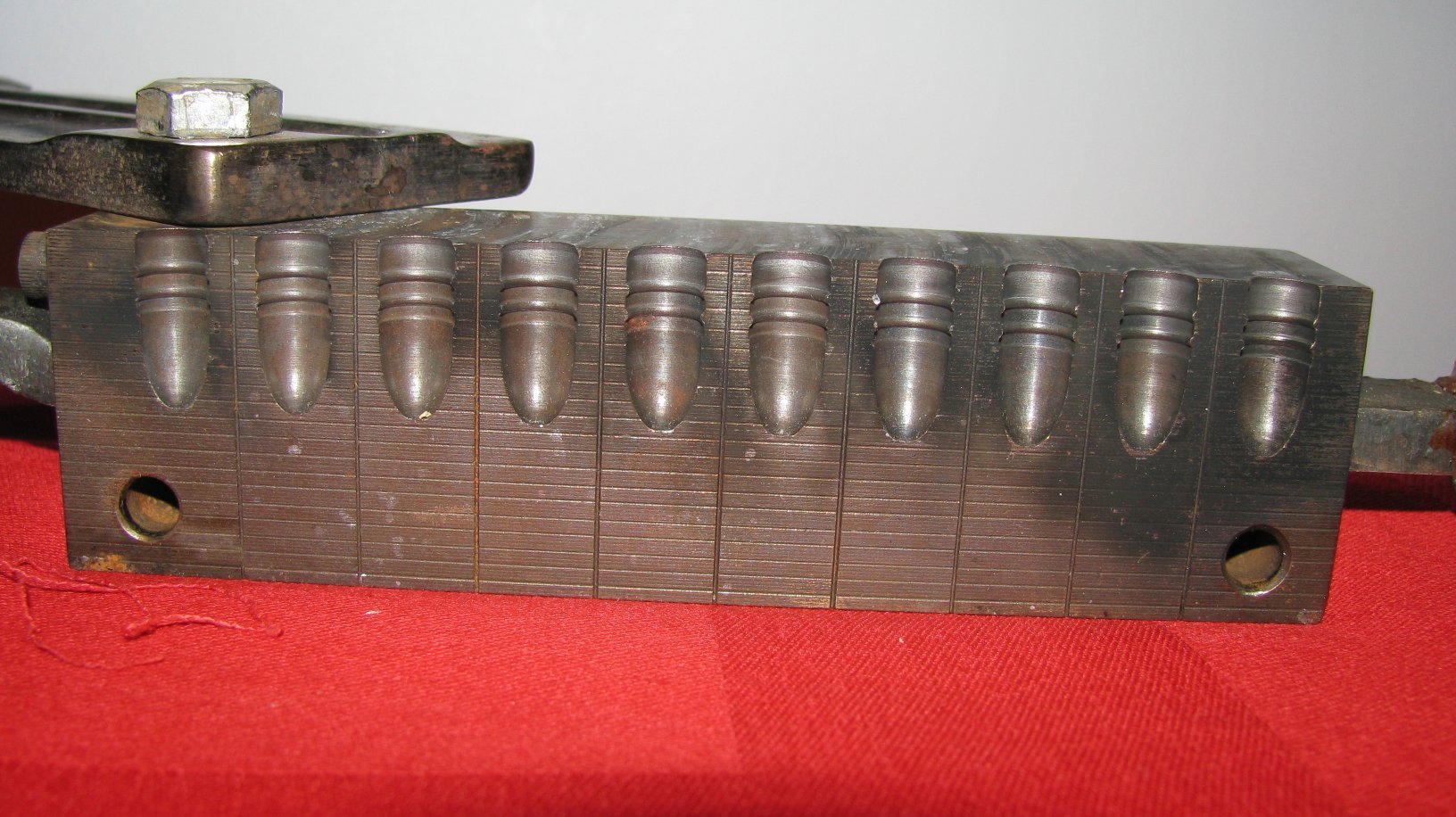

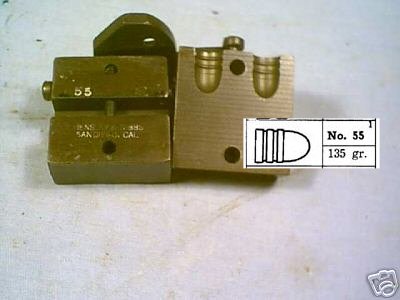

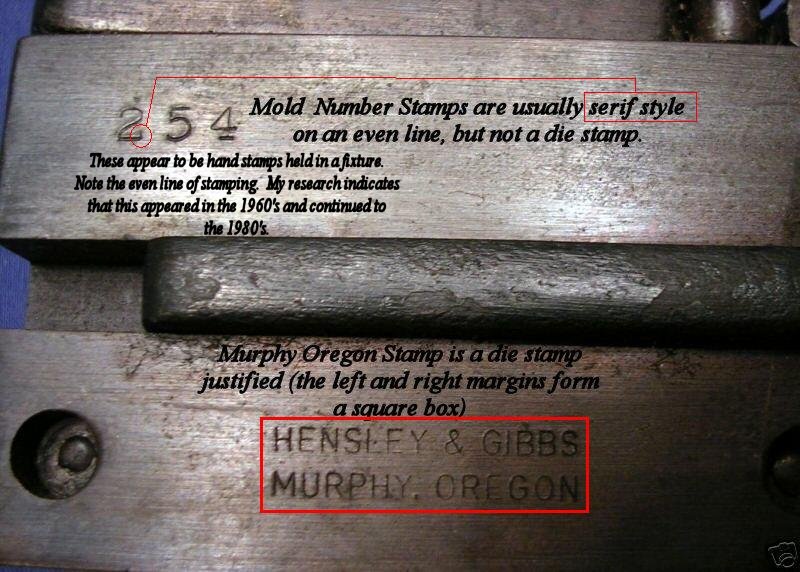

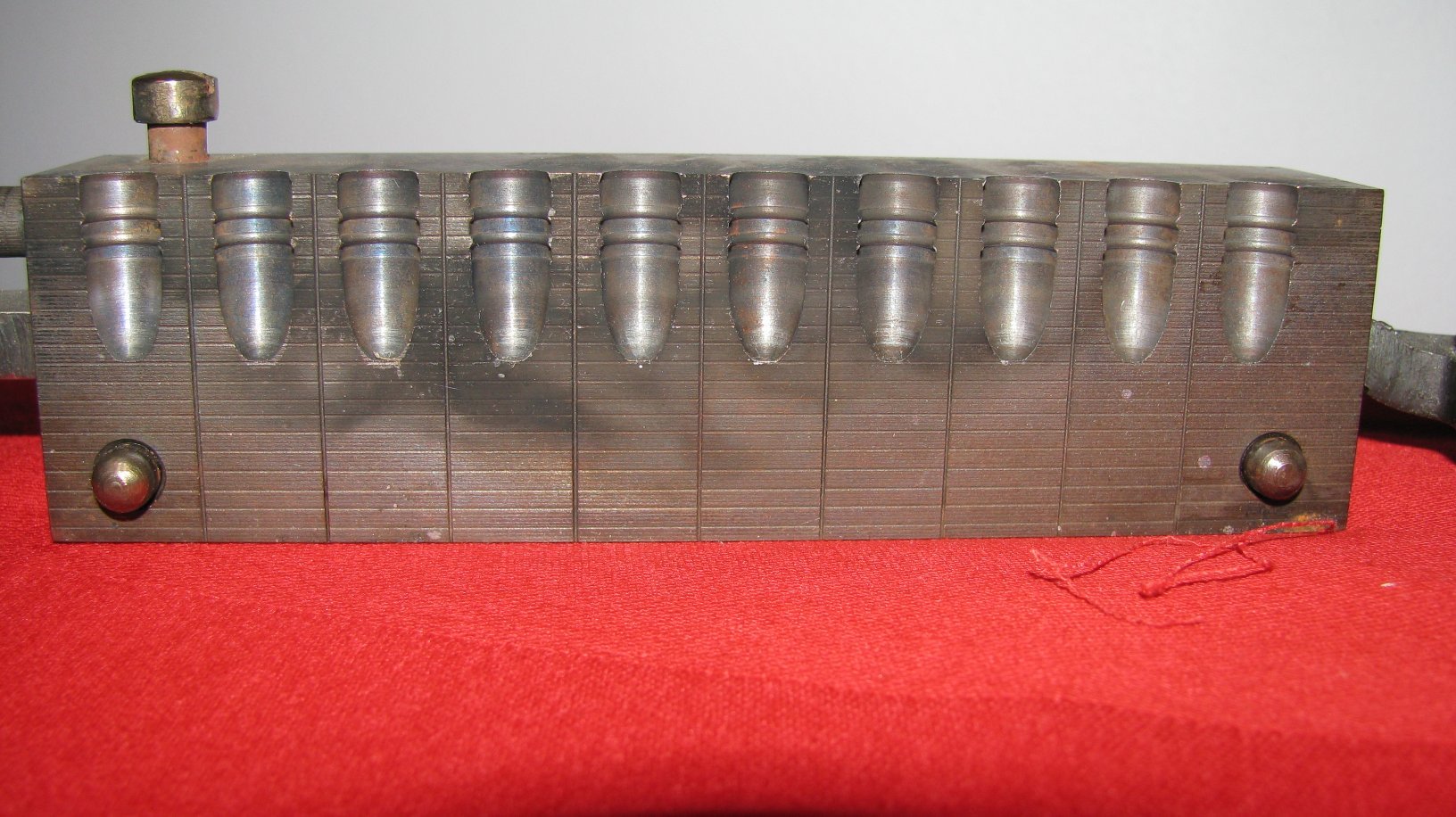

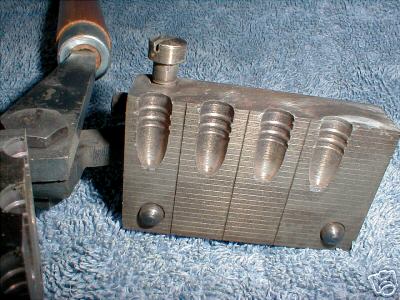

		.308	115	BB	254		Pic1 Pic2 Pic3 RGG

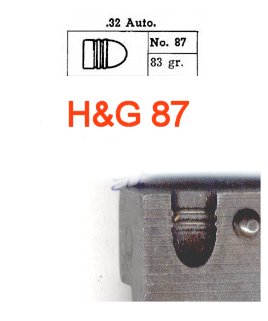

32 Auto		.309	83	PB	87		RGG
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
32 Revolver		.312,.313	40	PB	354		RGG;LM
		.312,.313	90	PB	299		RGG;SM

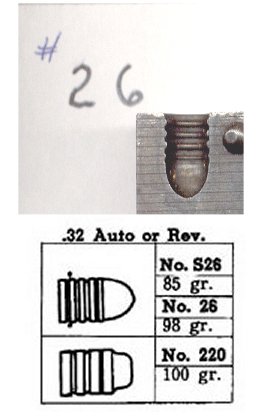

		.312,.313	85	PB	26-4		RGG;OCG;4DB

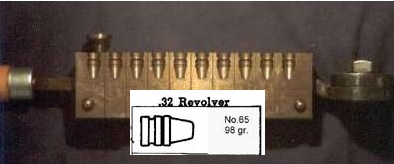

		.312,.313	98	PB	26-5		RGG;OCG;BB;SWS;MM

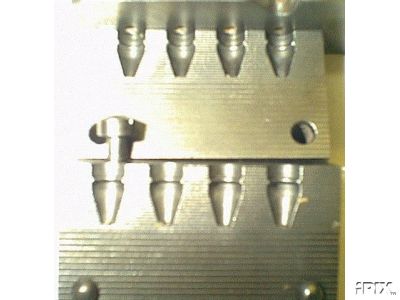

		.312,.313	98	PB	65		RGG;OCG;BB;SWS;MM
		.312,.313	98	PB	252		RGG;OCG;BB
		.312,.313	90	PB	S216		RGG;OCG;MM;RSWS
		.312,.313	100	PB	216		RGG;OCG;MM;RSWS
		.312,.313	200	PB	220		RGG;OCG;MM;RSWS
		.312,.313	115	PB	361		RGG;OCG;SM
32 S&W Long		.312	100	PB	65		RGG;OCG;LM;SWS;BB
		.312	100	PB	353		SGG;LEEF;LM
		.312	98	PB	66		See Photo
		.312	105	BB			RGG;SQUARE CORNERS;NO BEVELS

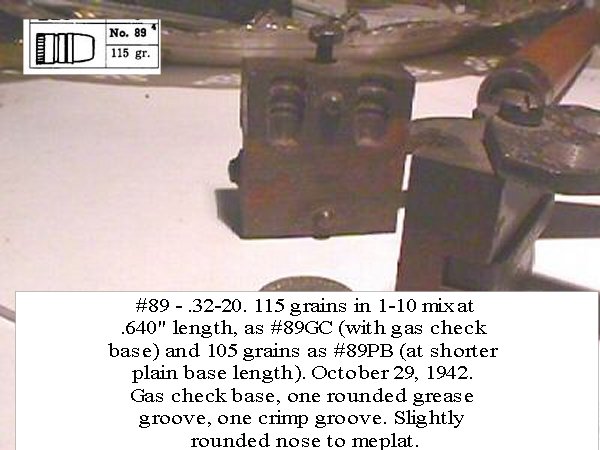

32-20		.312	115	PB	89		RGG;OCG;LM
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
32-20		.312	115	PB	67		RGG;MM
		.312	115	BB	388		RGG;OCG;MM
32 H&R Mag		.313	106	PB			SGG;OCG;SWS;LM

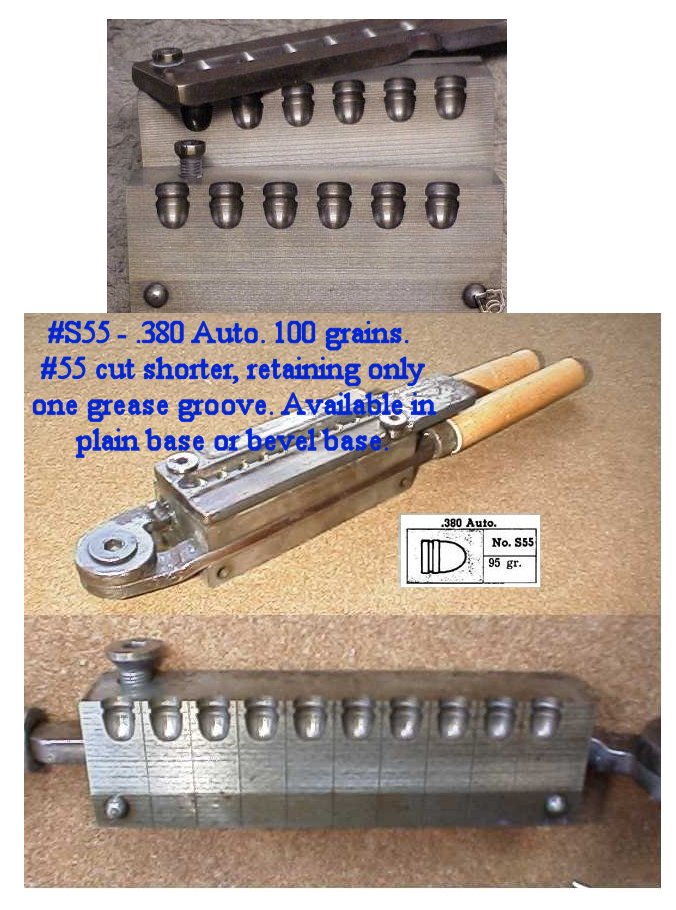

380 Auto		.356	100	PB	S55		RGG;BB
9mm Luger		.356	98	BB	279		RGG;SM
		.356	115	BB	307		SGG
		.356	115	PB	308		RGG

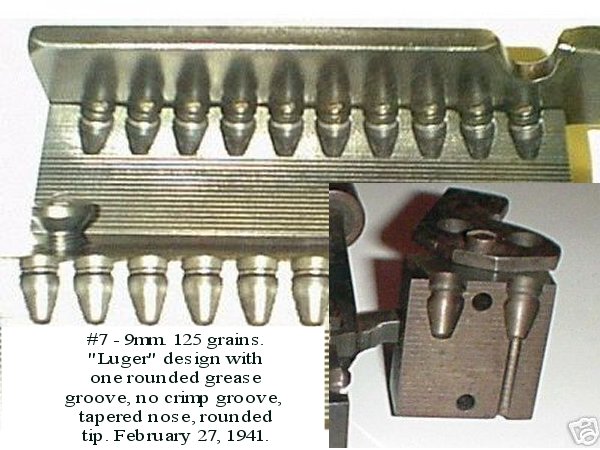

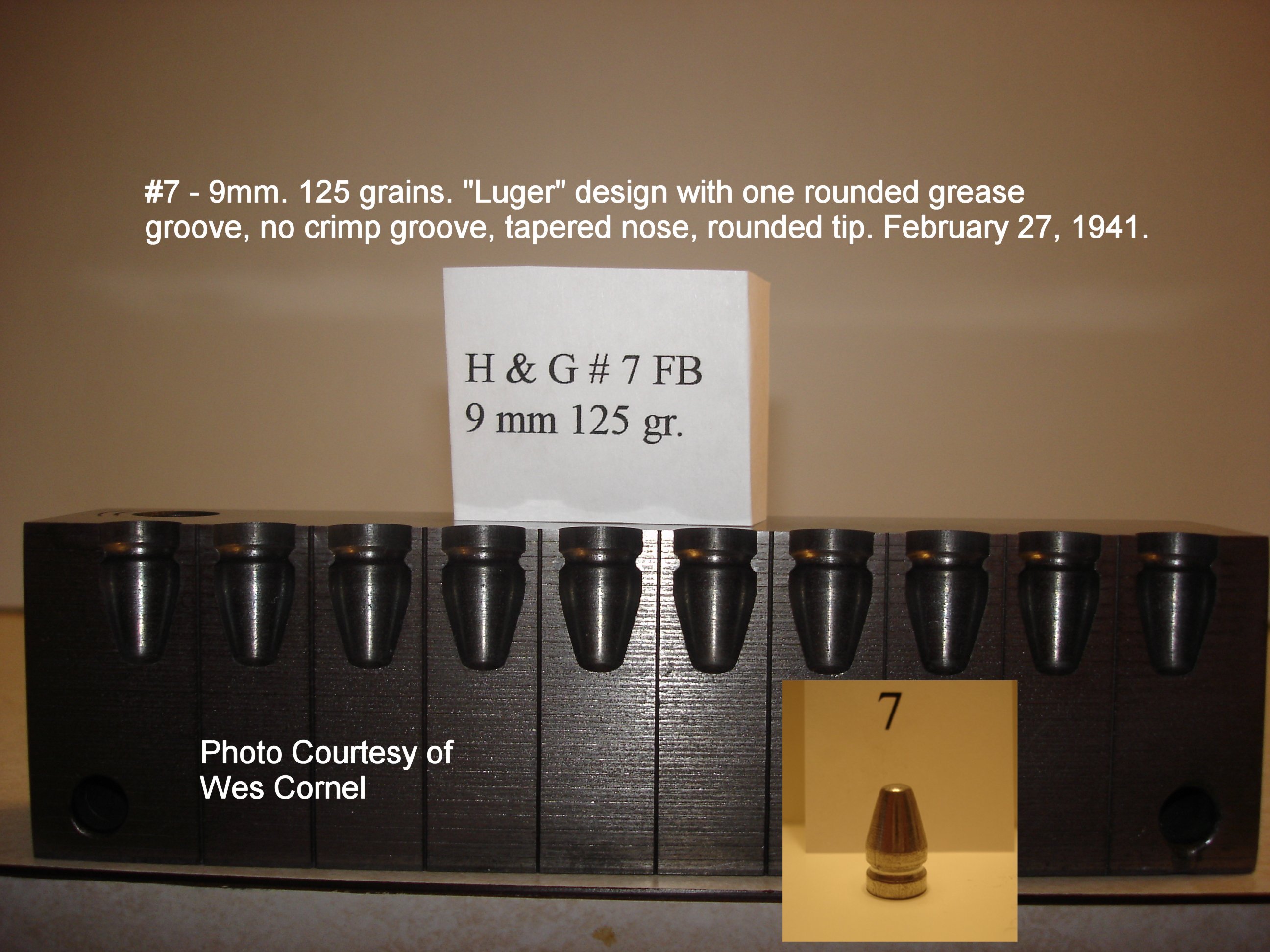

		.356	125	PB	7		RGG
		.356	120	BB	115		RGG
		.356	125	BB	264		RGG;SWS;SM

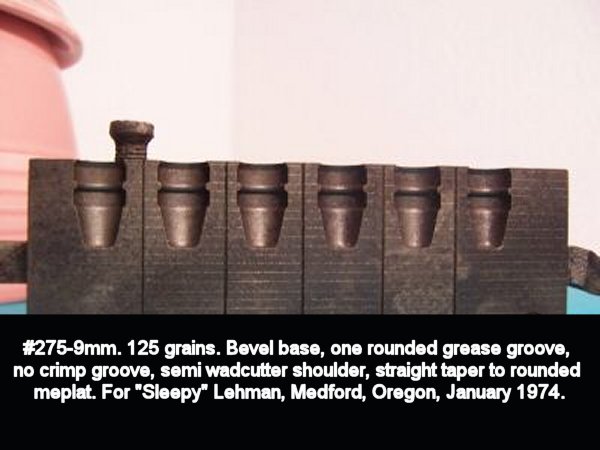

		.356	125	BB	275		RGG;SWS;MM

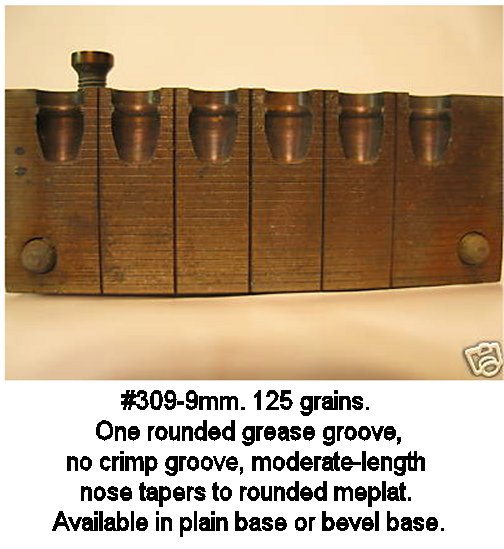

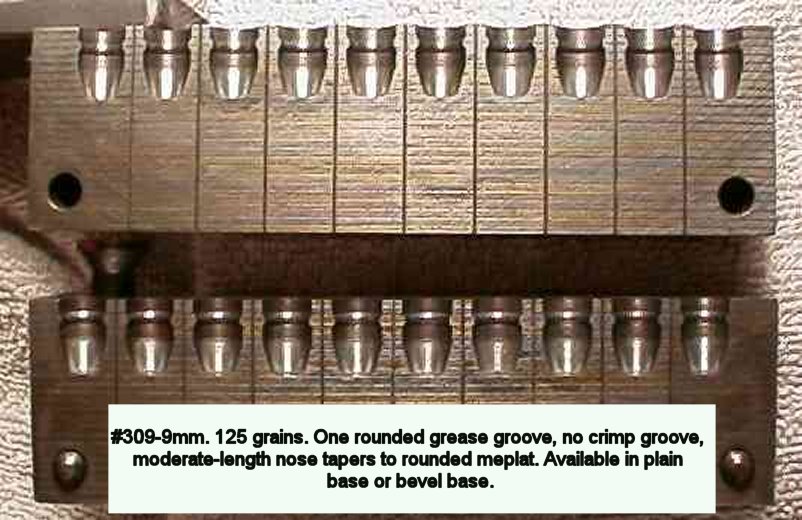

		.356	125	BB	309		RGG;LM;BB

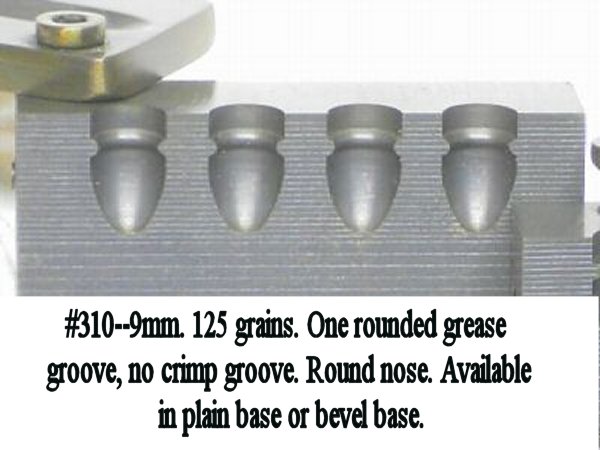

		.356	125	PB	310		RGG;BB
		.356	125	PB	318		RGG;RSWS;LM
		.356	125	PB	331		RGG
		.356	128	PB	317		RGG;LM
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
9mm Luger		.356	135	BB	286		RGG;MM

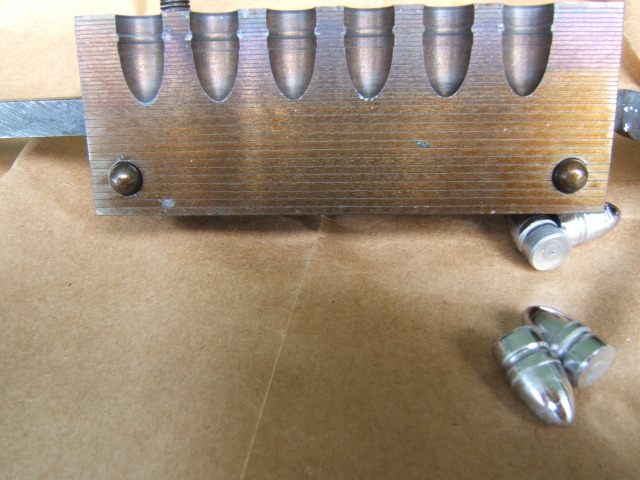

		.356	135	BB	314		Pic2 Pic3 RGG;German Army Ogival
		.356	140	BB	313		RGG;OCG;ALSO FOR REVOLVER;SM

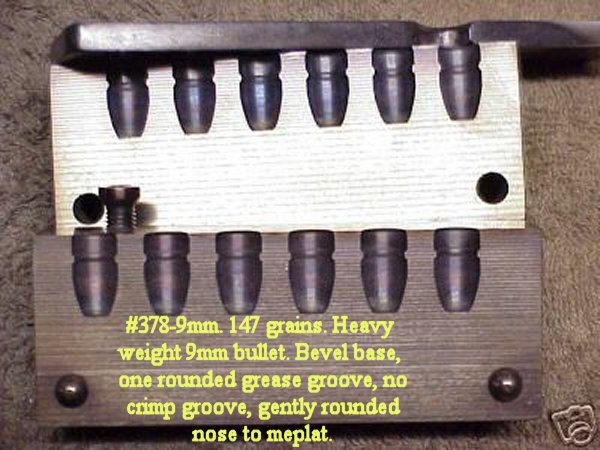

		.356	147	BB	378		RGG;SM
		.356	150	BB	363		SGG;LM
		.356	150	BB	377		RGG
9mm Makarov		.364	105	PB	375		RGG
38 Super		.356	115	BB	262		RGG;SWS;LM

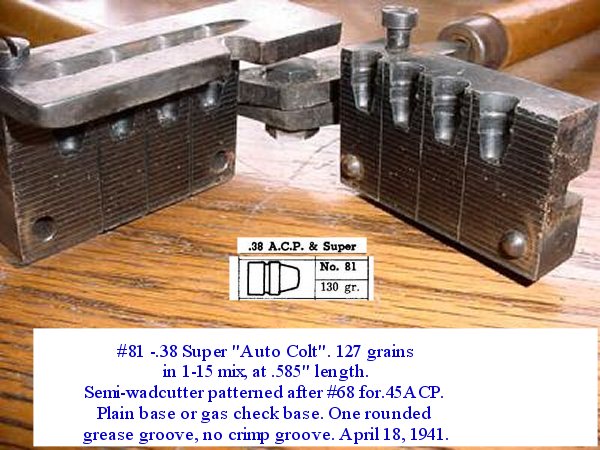

		.356	130	PB	81		RGG;SWS;LM
		.356	130	PB	157		RGG;MM;RSWS

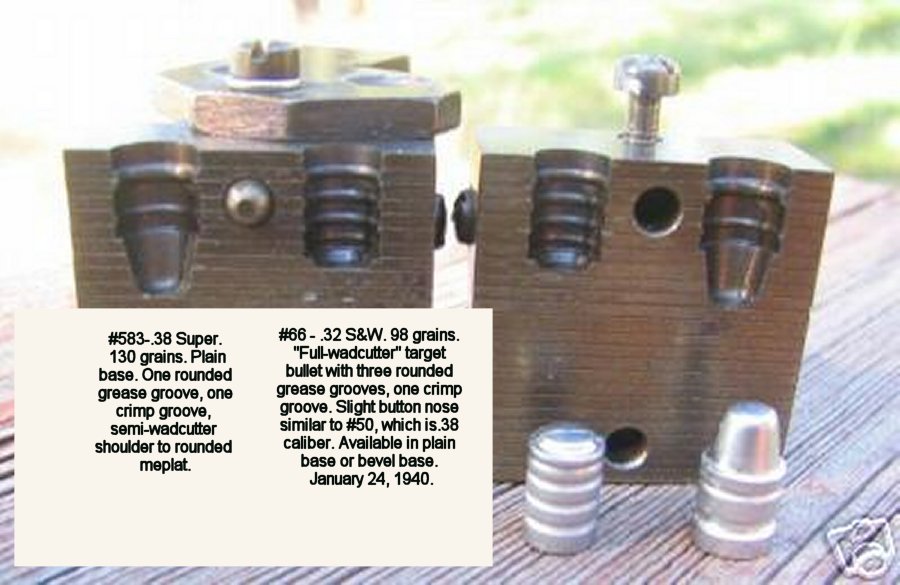

		.356	130	PB	583		RGG;OCG;SWS;MM
		.356	135	PB	55		BB
		.356	135	PB	161		RGG;MM;RSWS

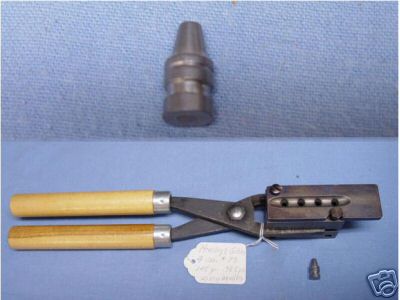

		.356	145	PB	73		BB;SGG;OCG;SWS;SM
		.356	145	PB	123		RGG;SWS
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
38 Super		.356	150	PB	355		SGG;SWS;SM
		.356	152	BB	335		SGG;SWS;MM
		.356	155	BB	370		SGG;MM
		.356	158	BB	39BB		RGG;OCG

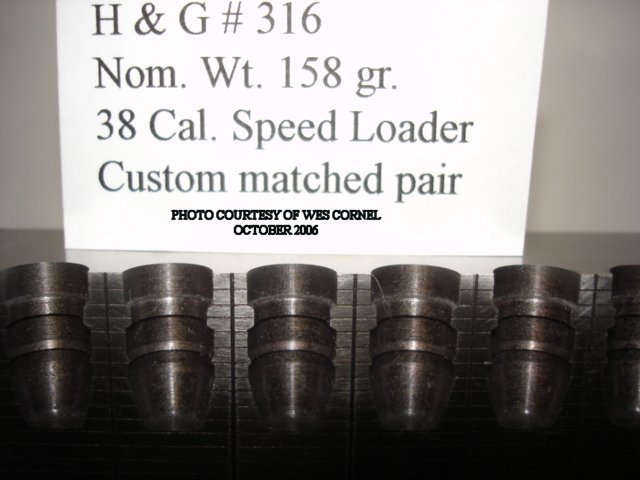

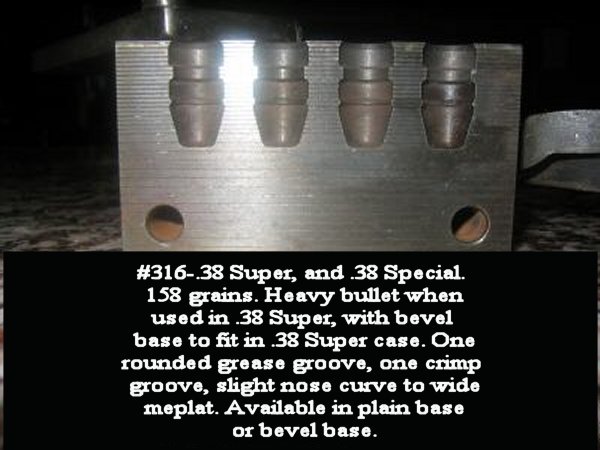

		.356	158	BB	316 Pic2		SGG;OCG;MM

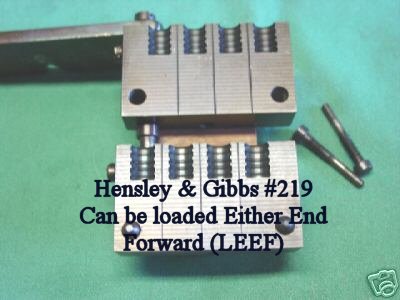

38 Special		.356	145	PB	219		RGG;LEEF;LM

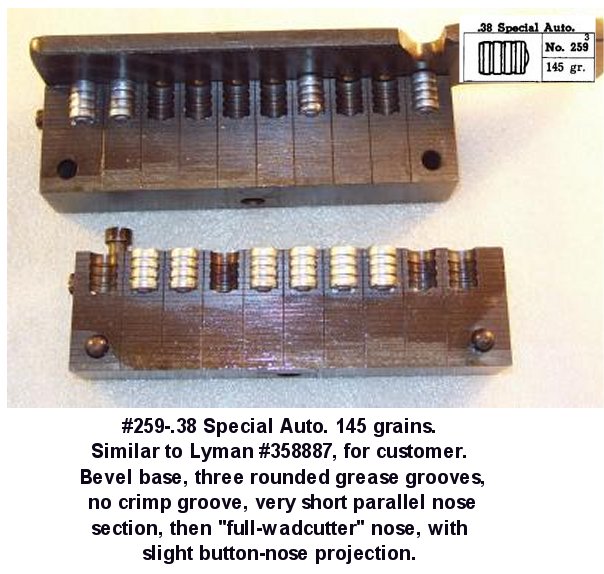

		.356	145	BB	259		RGG;SWS

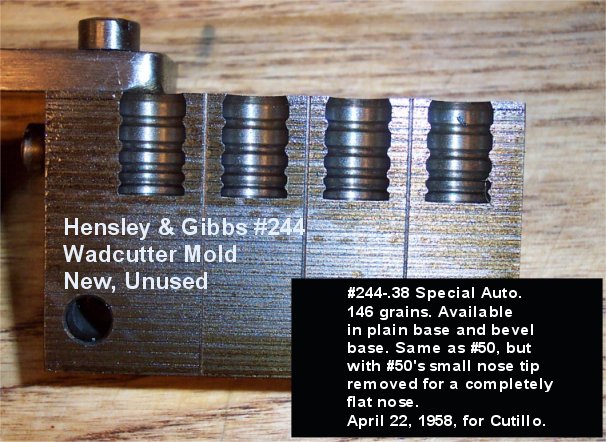

		.356	146	PB	244		BB;RGG;OCG;LM
		.356	150	PB	248		RGG;OCG;SWS;LM

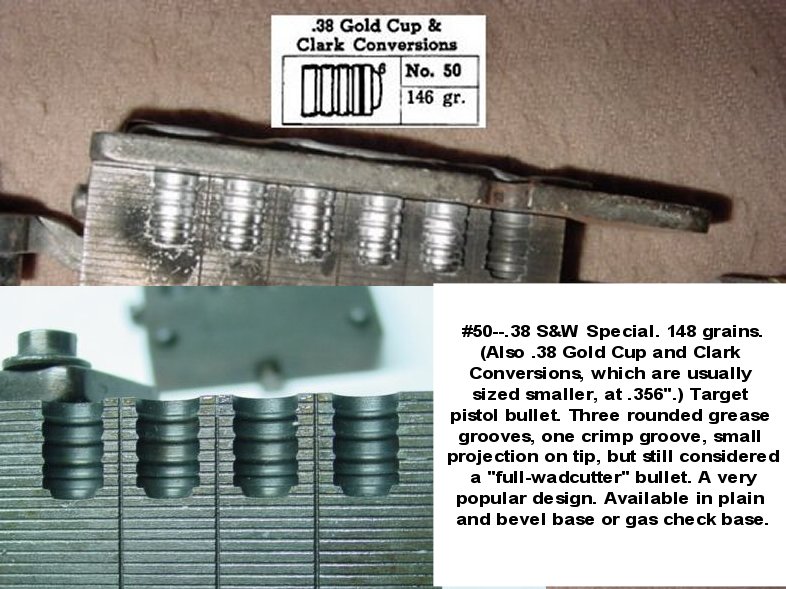

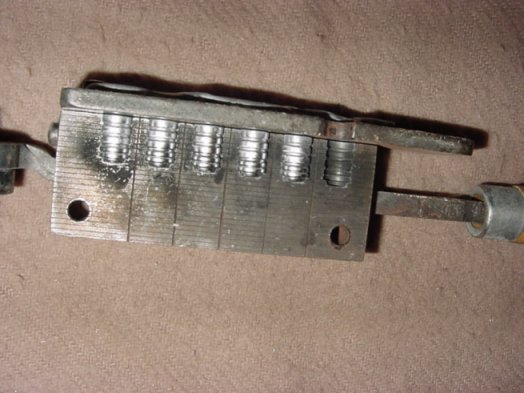

38 SPCL/GOLD CUP Clark Conversions		.356	148	BB	50		BB;RGG;OCG;SWS;LM
38 SPCL/.357 MAG		.358	62	PB	333		RGG;LM
		.356	148	BB	251		RGG;LM

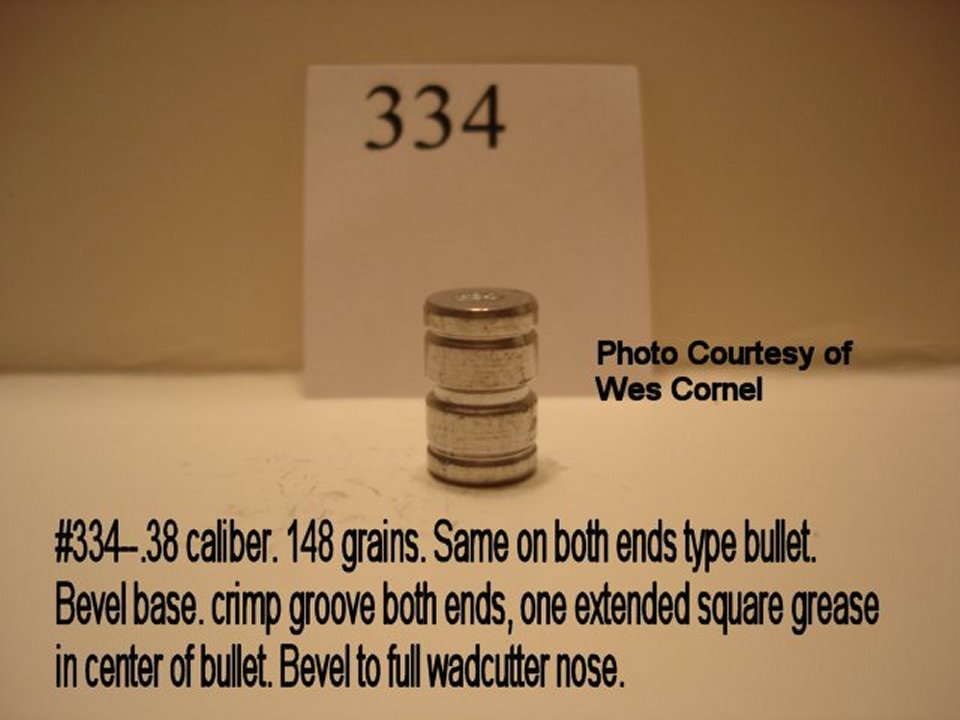

		.356	148	BB	334		SGG;LEEF;LM

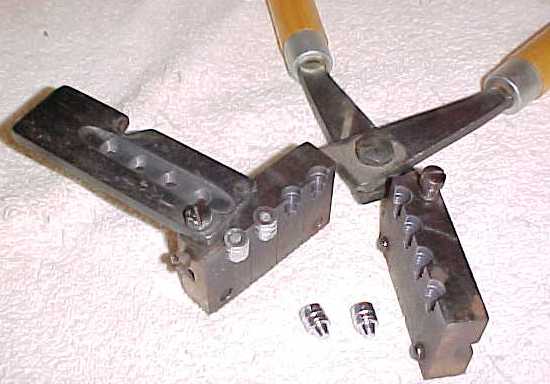

		.358	100		234		GC BASE,RGG;OCG;SWS;MM

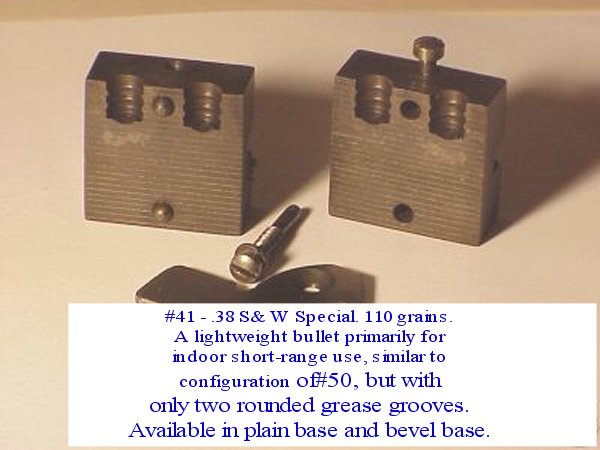

		.358	110	PB	41		BB;RGG;OCG;SWS;LM
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
38 SPCL/.357 MAG		.358	130	PB	246		SGG;SWS;MM
		.358	135	PB	272		SGG;OCG
		.358	140	BB	392		RGG;OCG;NDB
		.358	140	BB	313BB		RGG;OCG; also forrev. Bullet;SM
		.358	125	PB	313PB		RGG;OCG; also forrev. Bullet;SM
		.358	140		393		GC;RGG;OCG;LM
		.358	140	BB	511		SGG;OCG;MM

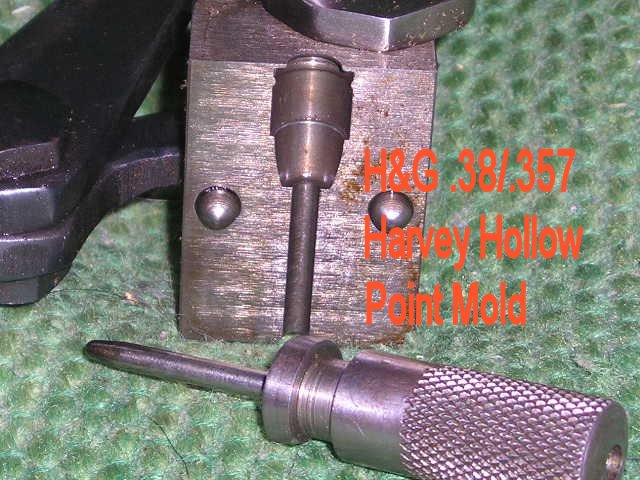

Harvey Style .38/.357 H.P.		.358	???	??	210		???????????
		.358	145	PB	63		BB;RGG;OCG
Same in .38 Super		.358	145	PB	73		BB;SGG;OCG;SM

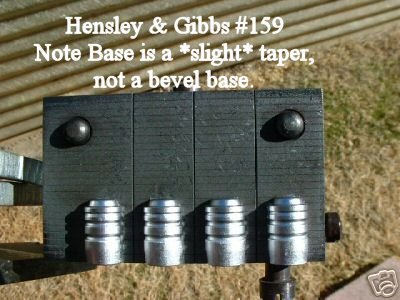

		.358	146		159		RGG;OCG;SWS; tapered boattail;LM
.38 SPCL/.357 Mag.		.358	148	PB	50		BB;RGG;OCG;SWS;LM
		.358	150	PB	9		BB;RGG;OCG;SWS;LM
		.358	150	PB	12A		GC;RGG;MM
		.358	130	PB	12B		GC;RGG;MM

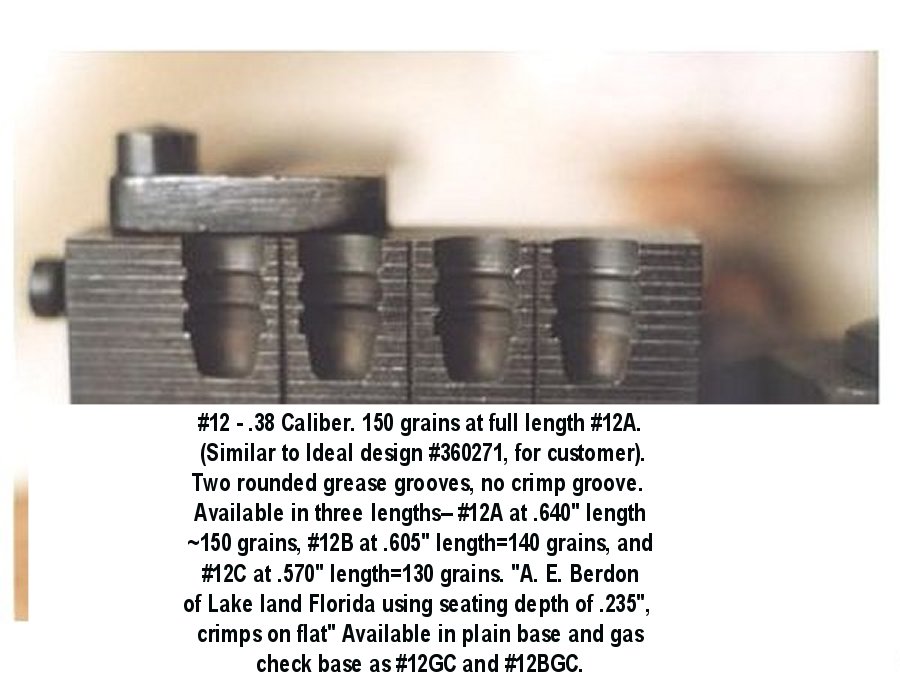

		.358	140	PB	12C		GC;RGG;MM

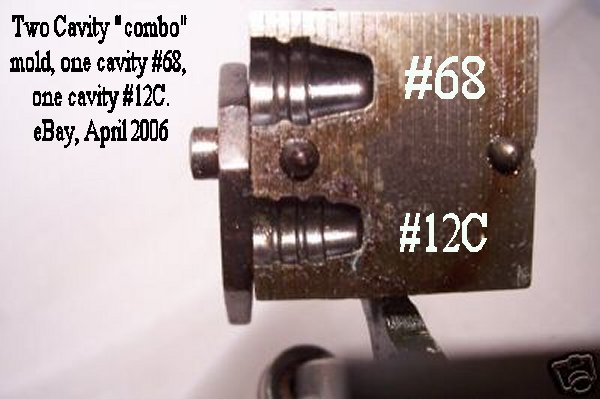

Special Combo Mould		.358/.452	Std		12C & 68		Special Combo Mould

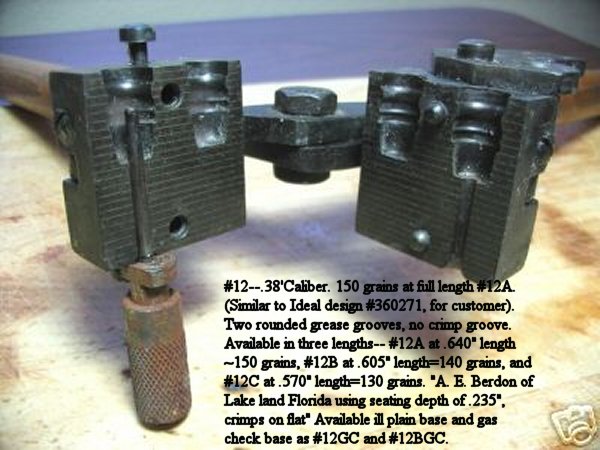

12C Hollow Point Mould		.358	140	PB	12C H.P.		PB;RGG;MM

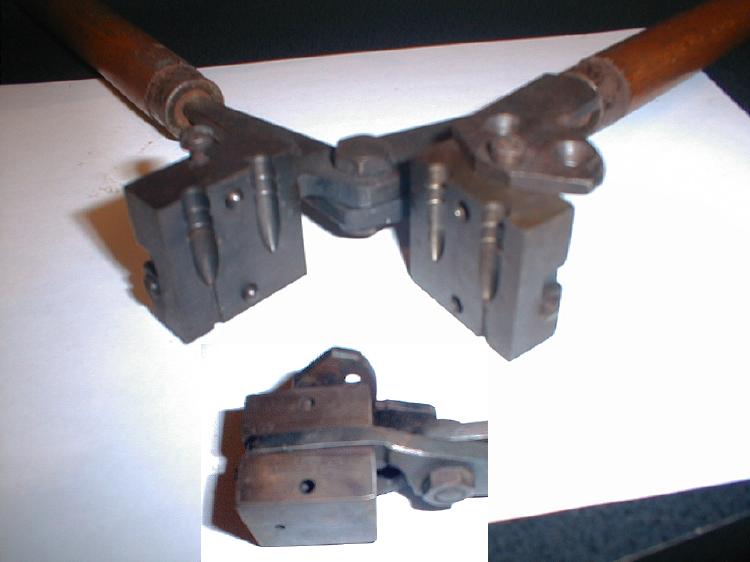

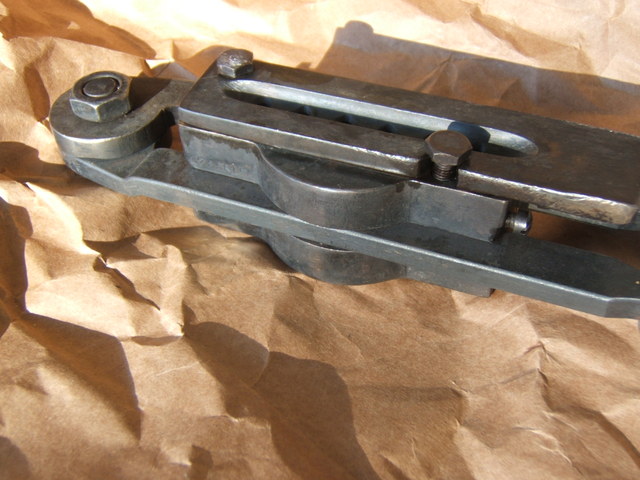

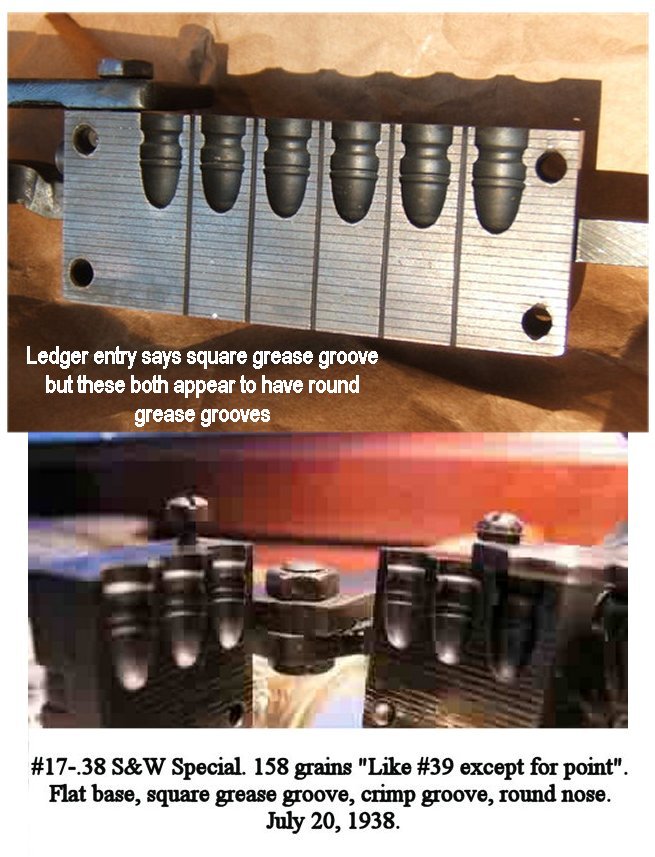

		.358	158	PB	17		Pic3 Pic4 Pic5 See Photo for Details
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments

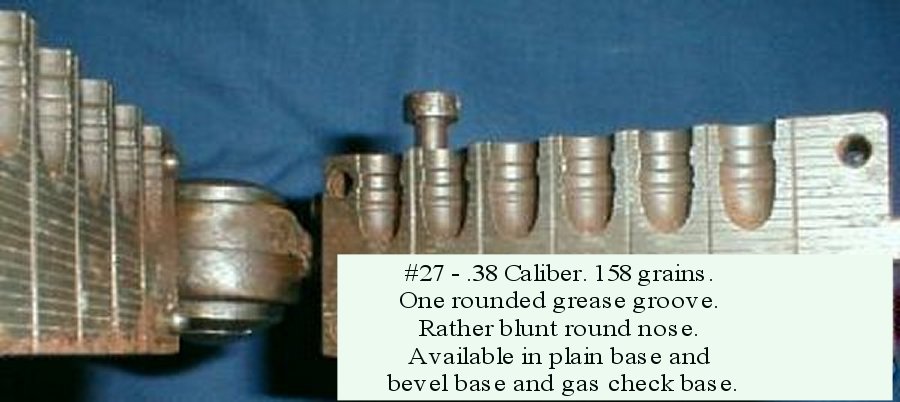

38 SPCL/.357 MAG		.358	150	PB	27		BB;RGG;OCG

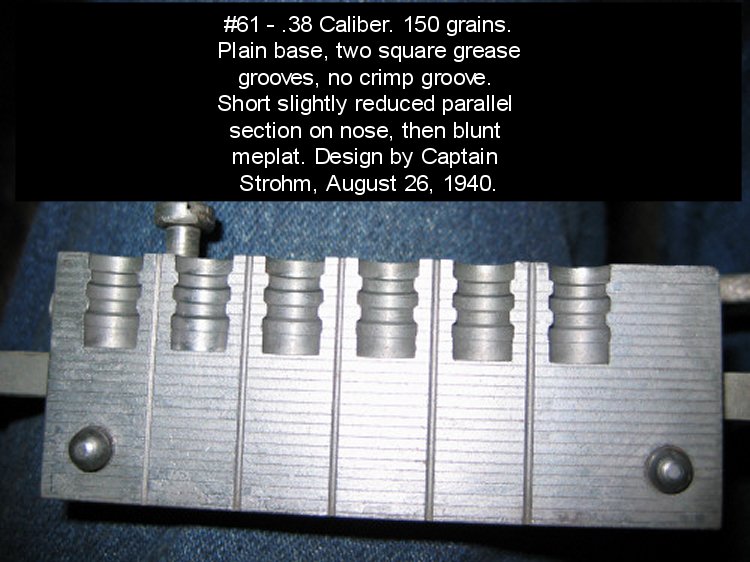

		.358	150	PB	61		SGG;SWS;LM

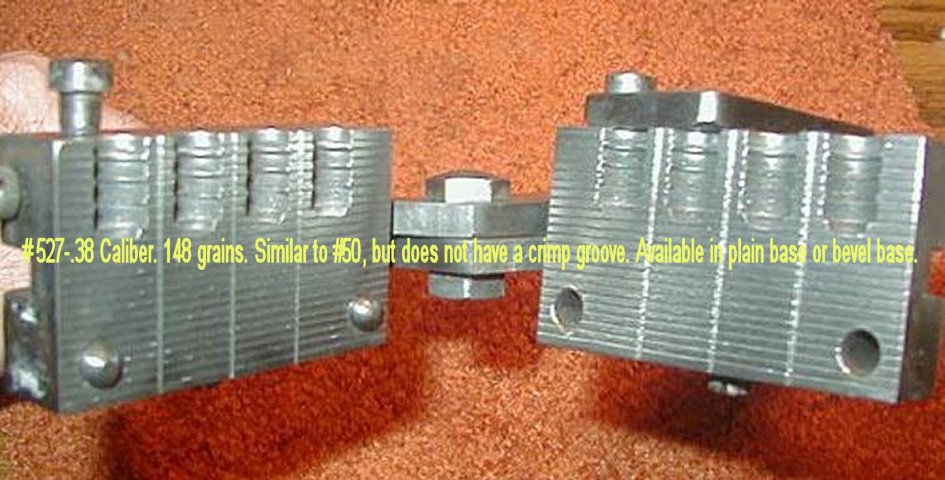

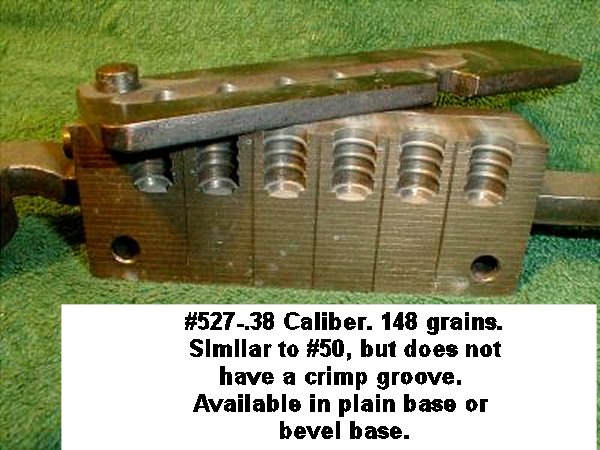

		.358	150	PB	527		BB;RGG;SWS;

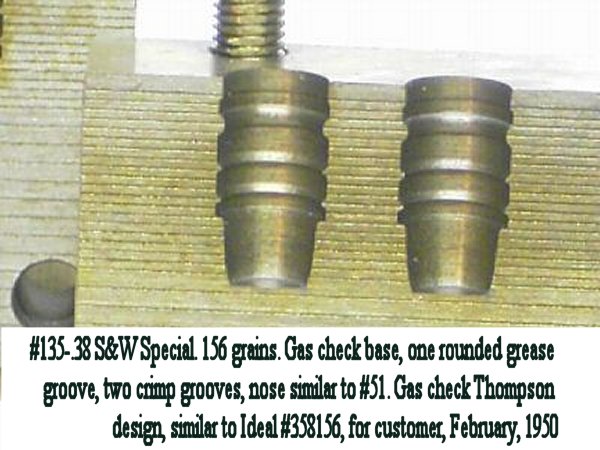

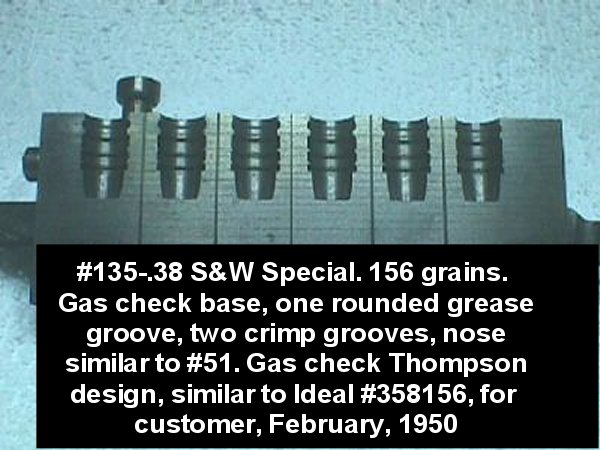

Same as Lyman 358156GC Ray Thompson Design		.356/.358	156	GC	135		GC;RGG;TCG;SWS;LM
		.358	156	PB	218		RGG;OCG;SWS;LM

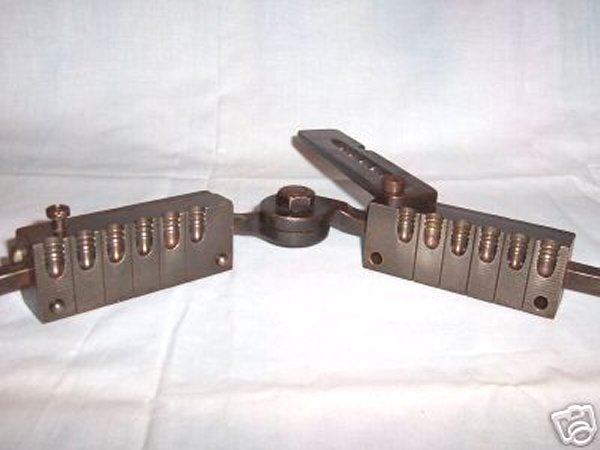

		.358	158	PB	28		BB;RGG;OCG

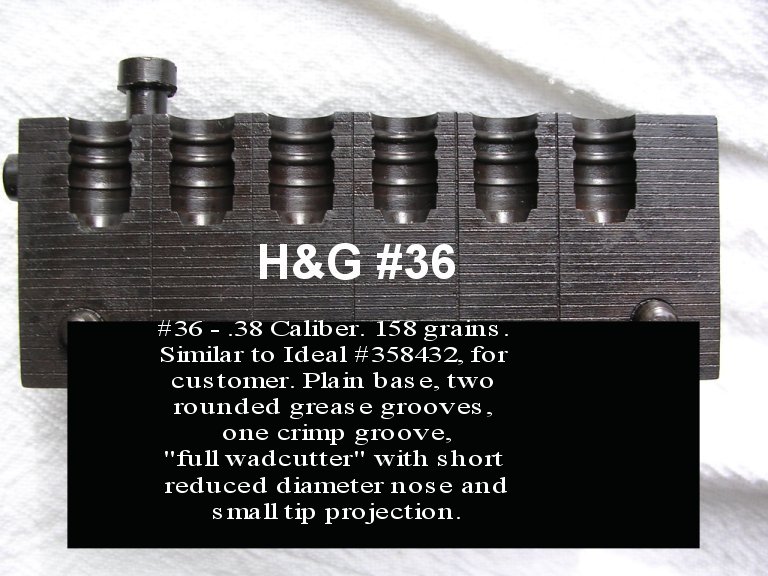

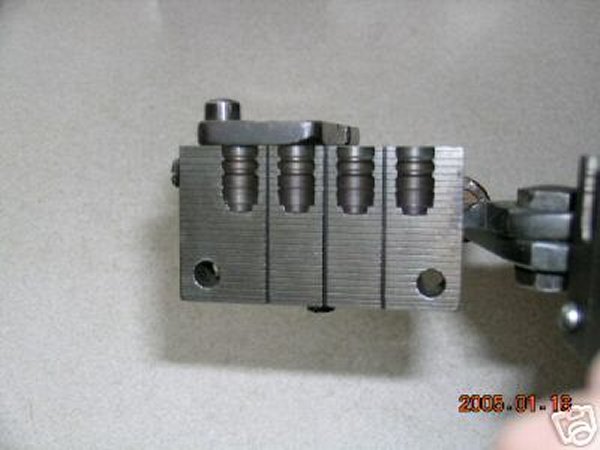

		.358	158	PB	36		RGG;OCG;SWS;LM
Custom Design		.358	158	PB	36		RGG;OCG;SWS;LM

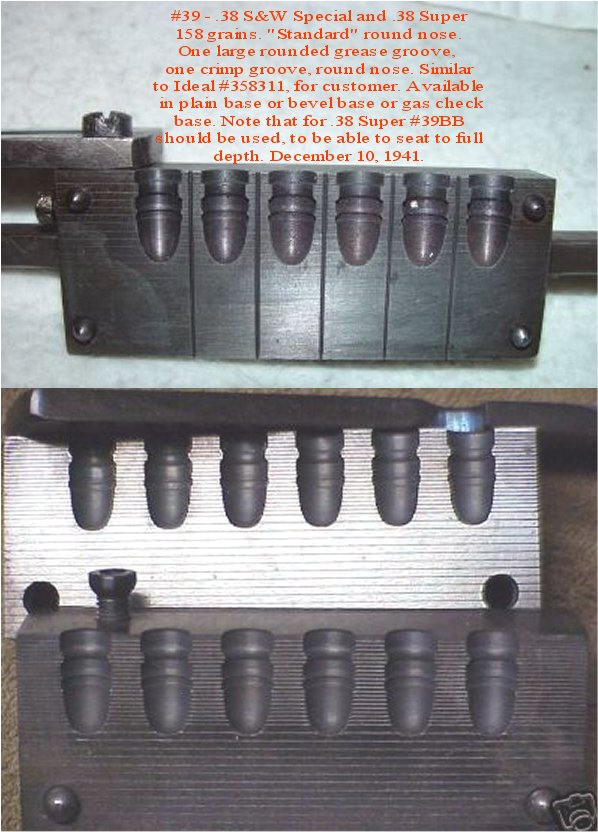

		.358	158	PB	39		BB & GC BASE;RGG;OCG
		.358	158	PB	48		BB;RGG;OCG;LM

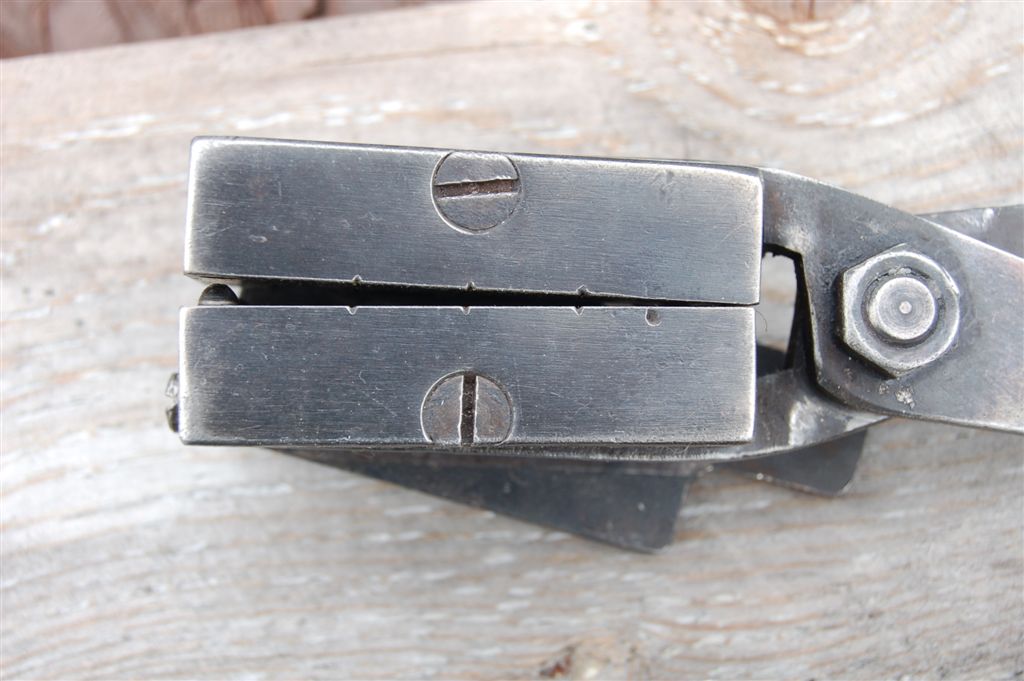

		.358	158	PB	49		Pic2 BB;RGG;OCG;MM

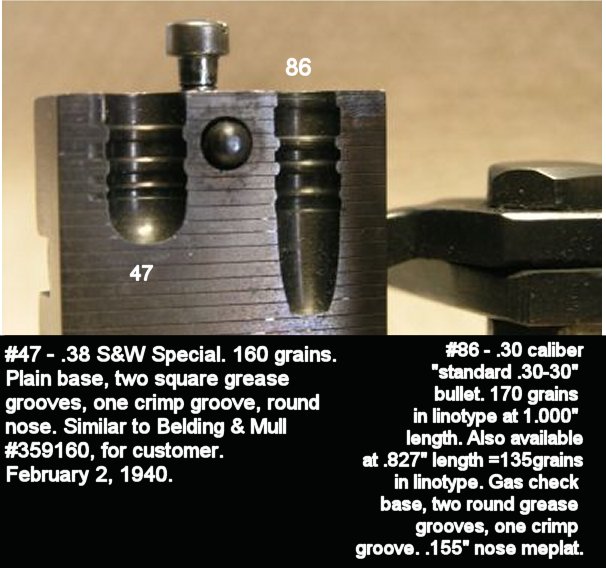

		.358	160	PB	47		PB;SGG;MM

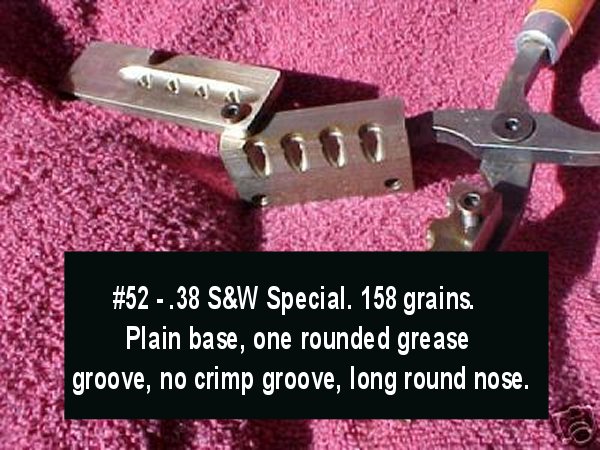

		.358	158	PB	52		RGG
		.358	158	PB	260		RGG;SM
		.358	158	PB	316		BB;SGG;OCG;MM

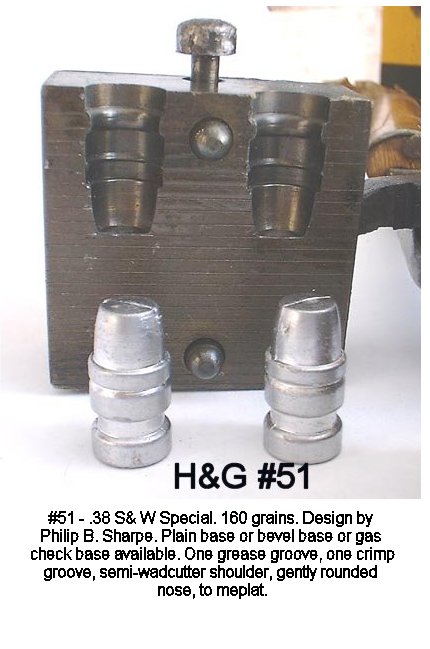

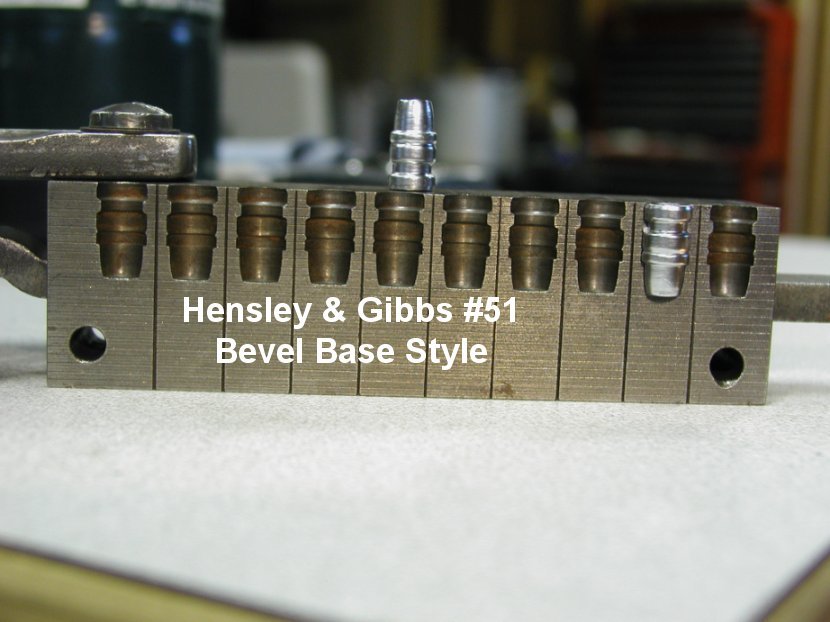

Similar to Lyman 358477		.358	160	PB	51 Pic 2		BB,PB  & GC BASE;SGG;OCG;LM

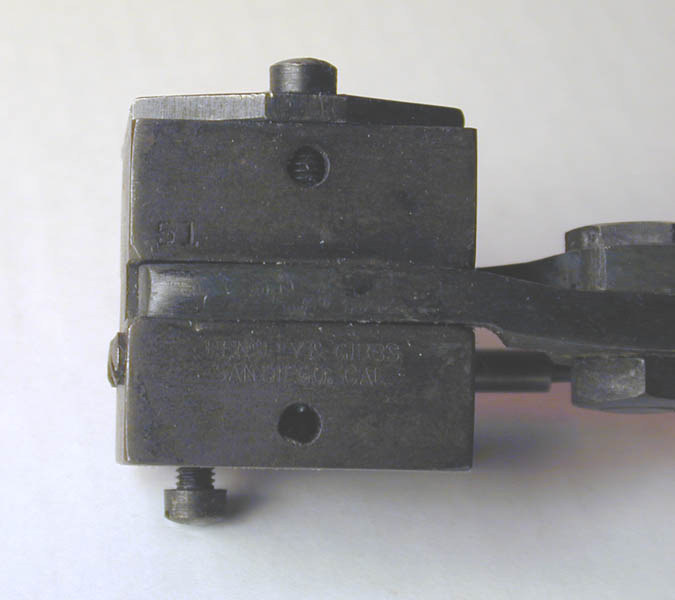

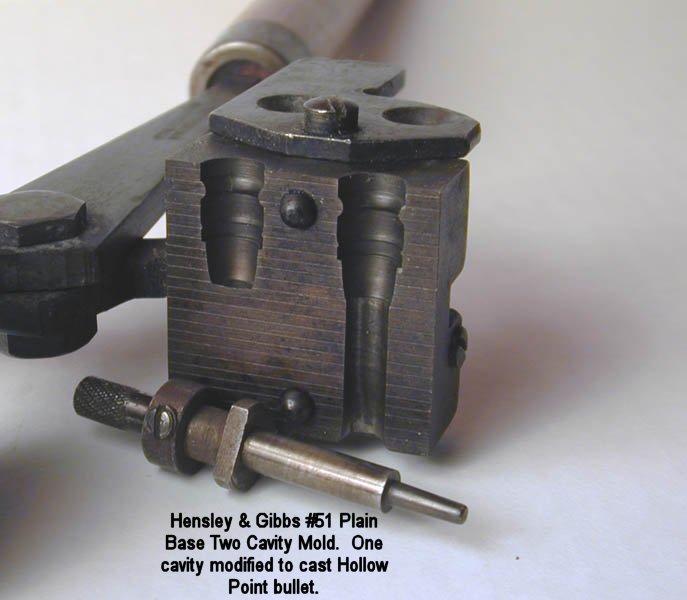

Hollow Point Version		.358	~155-160~	PB	51 H.P. Pic2		BB,PB, & GC BASE;SGG;OCG;LM
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
38 SPCL/.357 MAG		.358	160	PB	236		GC;RGG;OCG;SWS;LM

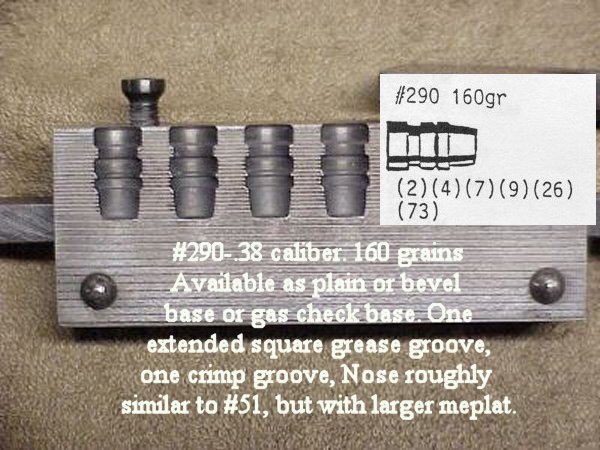

		.358	160	PB	290		BB;SGG;OCG;SWS;LM
		.358	160	BB	801BB		SGG;OCG;SWS;LM
		.358	163	PB	64		SGG;OCG;SWS;MM

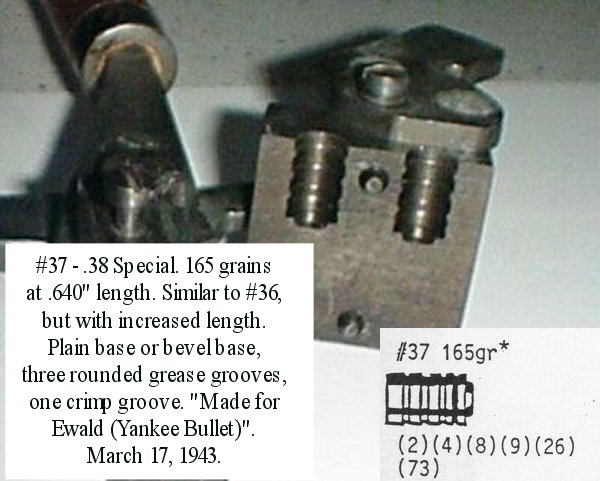

		.358	165	PB	37		BB;RGG;OCG;SWS;LM
		.358	165	PB	56		RGG;OCG;TCG;SWS;LM
		.358	165		268		RGG;OCG;SWS;LM
		.358	170		30		GC;RGG
		.358	170		394		GC;RGG;OCG;LM

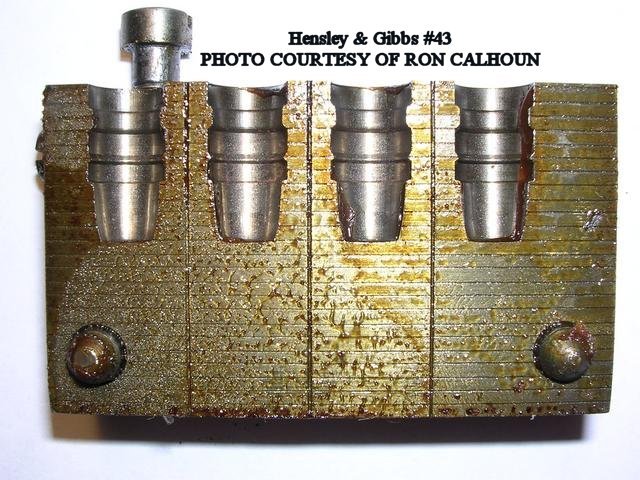

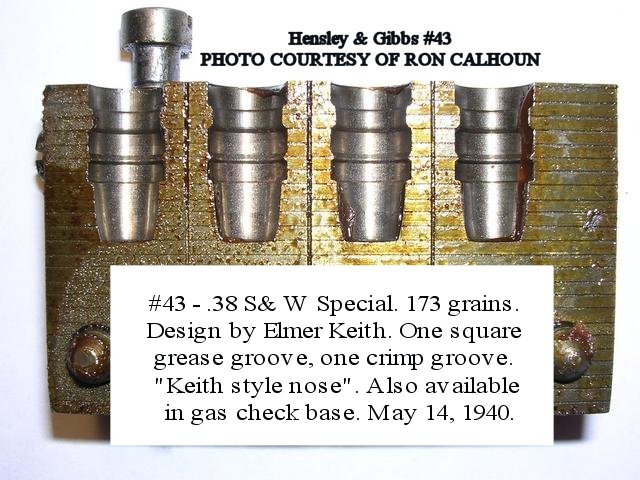

KEITH STYLE		.358	173	PB	43		SGG;OCG;SWS;LM
		.358	185		376		RGG;OCG;LM
		.358	190	PB	395		RGG;OCG;LM
		.358	125		322-3		RGG;OCG;3DB;SM
		.358	158		322-4		RGG;OCG;4DB;SM
		.358	190		322-4GC		RGG;OCG;3DB;SM;GC
		.358	175	PB	57-3		RGG;OCG;3DB;LM
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
38 SPCL/.357 MAG		.358	200	PB	57-4		RGG;OCG;4DB;SM
		.358	200	PB	138		RGG;OCG
		.358	215	PB	257
		.358	230	BB	127		SGG;OCG;LM
357 Maximum		.357/.358	200		319		SGG;OCG;SWS;LM
		.357/.358	200		320		GC;OCG;MM
		.357/.358	200		321		SGG;OCG;BOATTAIL BEVEL BASE;MM
375 Super Mag		.376	165		380-3		SGG;OCG;3DB;MM
		.376	185		380-3GC		SGG;OCG;3DB;MM;GC
		.376	210		380-4		SGG;OCG;4DB;MM
		.376	235		380-4GC		SGG;OCG;4DB;MM;GC
		.376	270		380-5		SGG;OCG;5DB;MM
38-40		.401	180		6		BB;RGG;OCG
41 Long Colt		.401	185	PB	121		RGG
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments

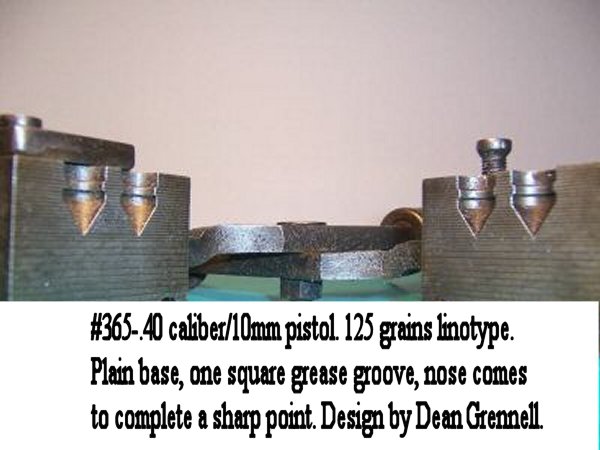

40 S&W/10MM		.401	125	PB	365		SGG
		.401	190	PB	324		See Photo for details

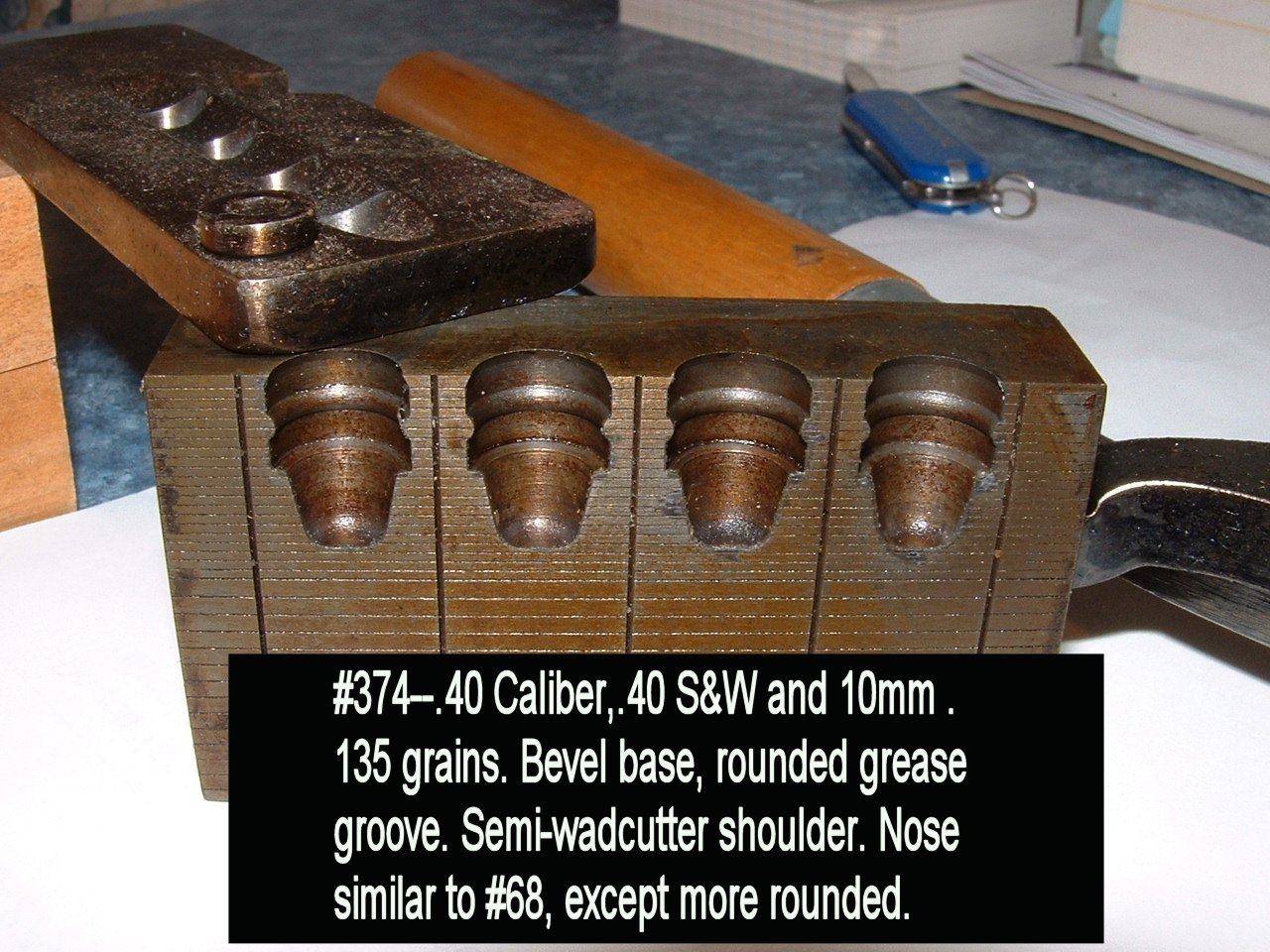

		.401	135	BB	374		RGG;SWS;SM
		.401	145	PB	360		SGG;REVOLVERS/SINGLE SHOTS ONLY
		.401	155	PB	373		RGG;SM

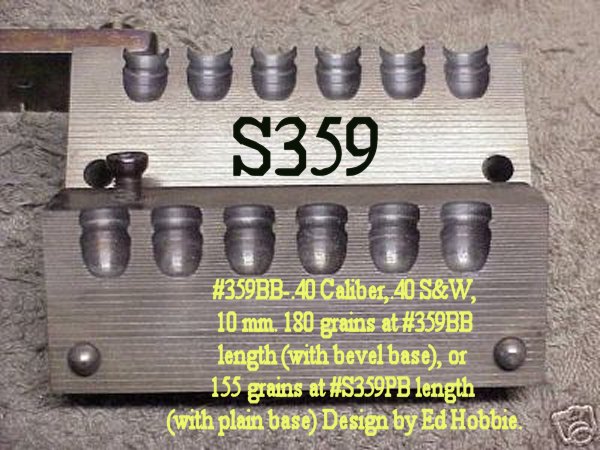

		.401	155	BB	S359BB		RGG;MM;RSWS
#68 Style in 40S&W		.401	175	PB	332		BB;RGG;SWS;MM
		.401	155	PB	S359PB		RGG;MM;RSWS
		.401	180	BB	359BB		RGG;MM;RSWS
		.401	190	BB	324		SGG;LM

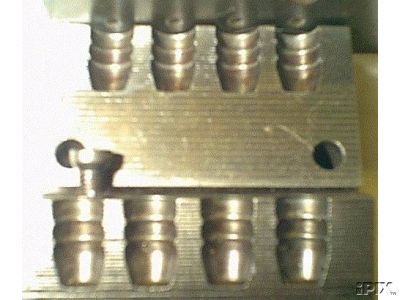

		.401	200	PB	315		RGG;LM
		.401	200	PB	396		RGG;OCG;LM
		.401	220	PB	397		RGG;OCG;LM
41 AE		.410	180	BB	342BB		RGG;SWS;;MEDIUM SHOULDER
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
41 Magnum		.410	79	PB	368		RGG;SWS;LM

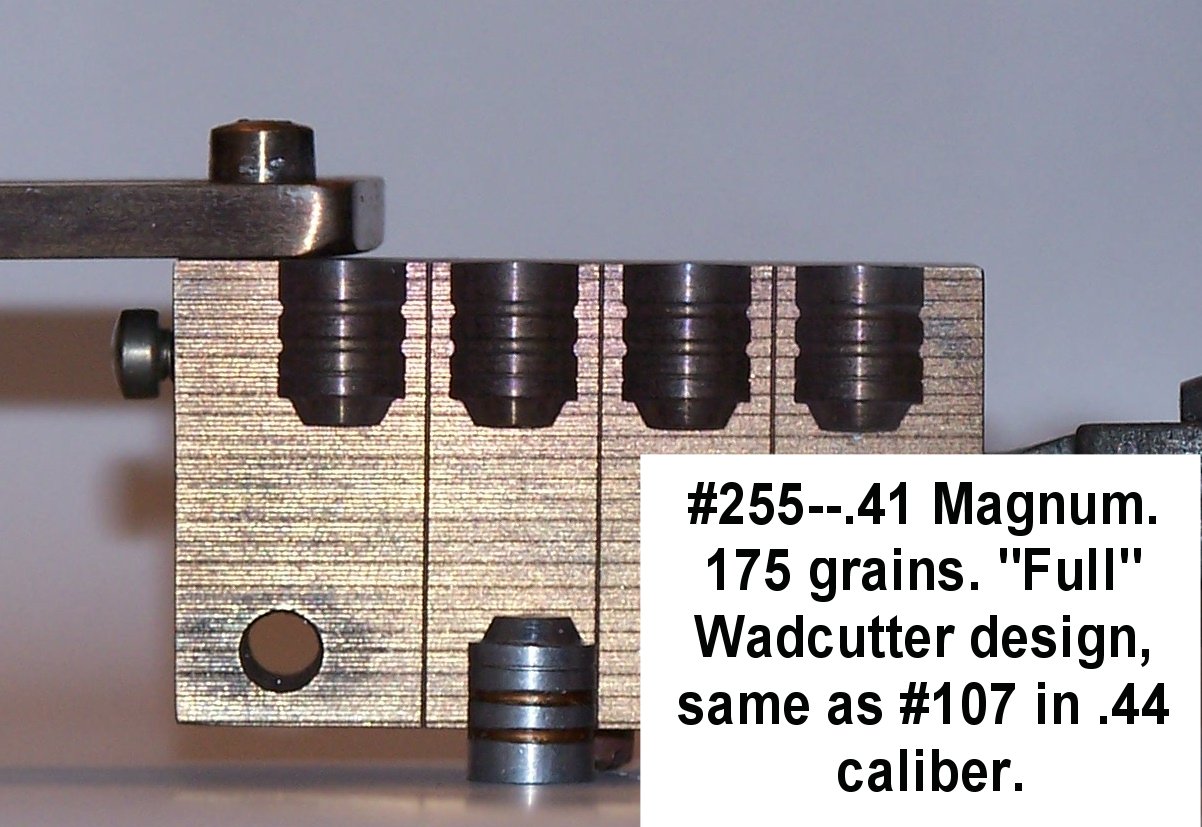

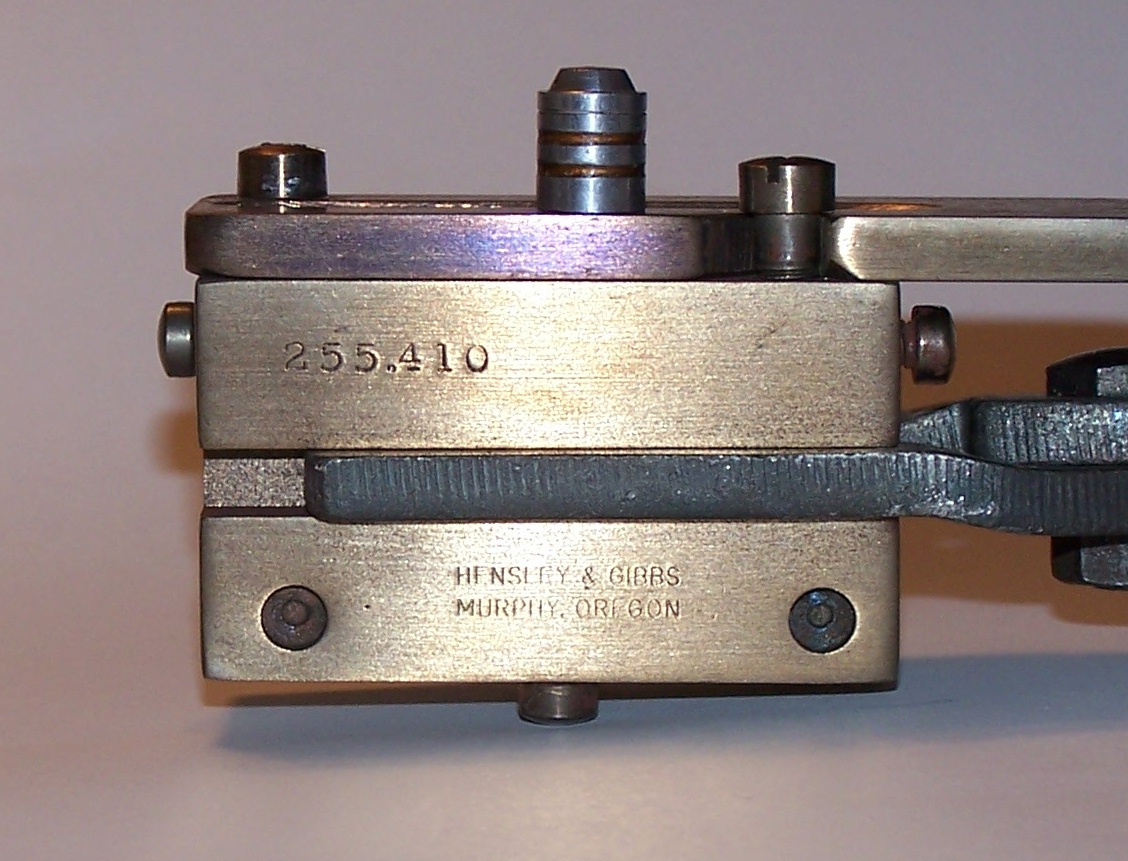

		.410	175	PB	255		RGG;OCG;SWS;LM
		.410	175	PB	291		SGG;OCG
		.410	210	PB	253		RGG;LM

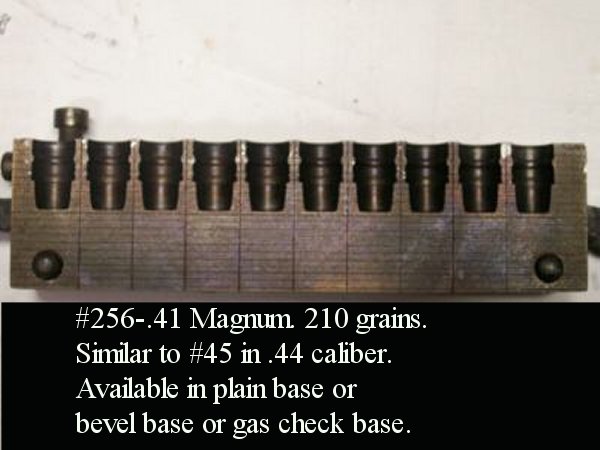

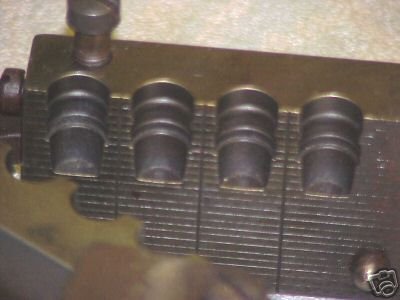

		.410	210	PB	256		BB AND GC;RGG;OCG;SWS;LM

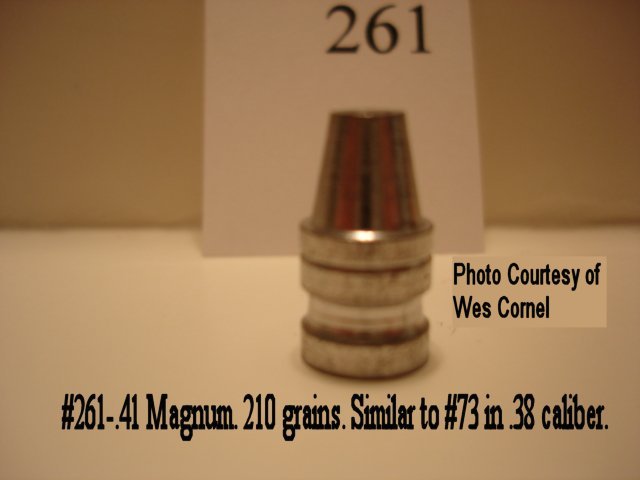

		.410	210	PB	261		RGG;OCG;SWS;MM
		.410	210	PB	263		RGG;OCG
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
41 Magnum KEITH		.410	220	PB	258		SGG;OCG;SWS;LM

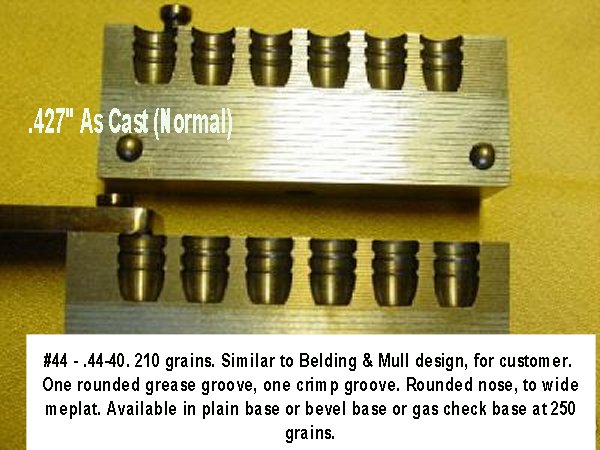

44-40		.427	210	PB	44		RGG;OCG;NDB;LM
		.427	250	PB	44GC		RGG;OCG;NDB;LM
		.427	210	PB	44BB		RGG;OCG;NDB;LM
		.427	205	PB	23		RGG;LM
44		.429/.431	85	BB	443		RGG;LM
		.429/.431	87	PB	350		RGG;LM
		.429/.431	180	PB	180		RGG;LM;RSWS
		.429/.431	180	PB	273		SGG;OCG
		.429/.431	185	PB	245		RGG;SWS;MM
		.429/.431	185	BB	366		SGG;LEEF;LM
		.429/.431	195	PB	340		SGG;OCG;SM
		.429/.431	200		237		GC;RGG;PCG;SWS;LM
		.429/.431	200	PB	239		RGG;OCG;LM
		.429/.431	200		240		GC;RGG;OCG
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
44		.429/.431	200	PB	241		RGG;OCG;SWS;LM
		.429/.431	205	BB	330		RGG;OCG;SWS;LM
		.429/.431	210	BB	271		RGG;SWS
		.429/.431	220	PB	247		RGG;SWS
		.429/.431	225	BB	341		SGG;OCG;LM
		.429/.431	190	PB	142PB		RGG;SWS;LM
		.429/.431	230		142GC		RGG;SWS

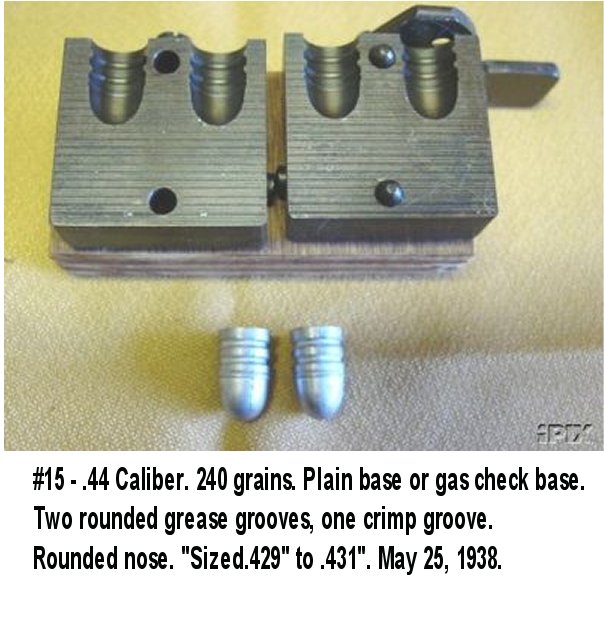

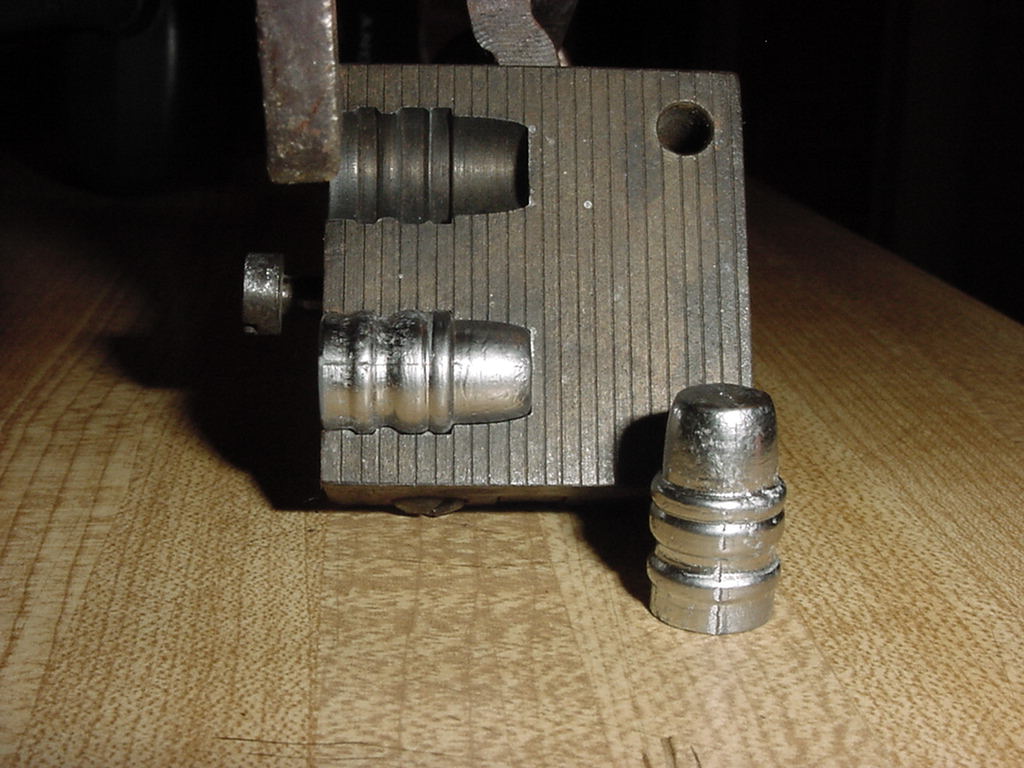

		.429/.431	240	PB	15 Pic2		GC;RGG;OCG
		.429/.431	240	PB	35		RGG;OCG;SWS;LM

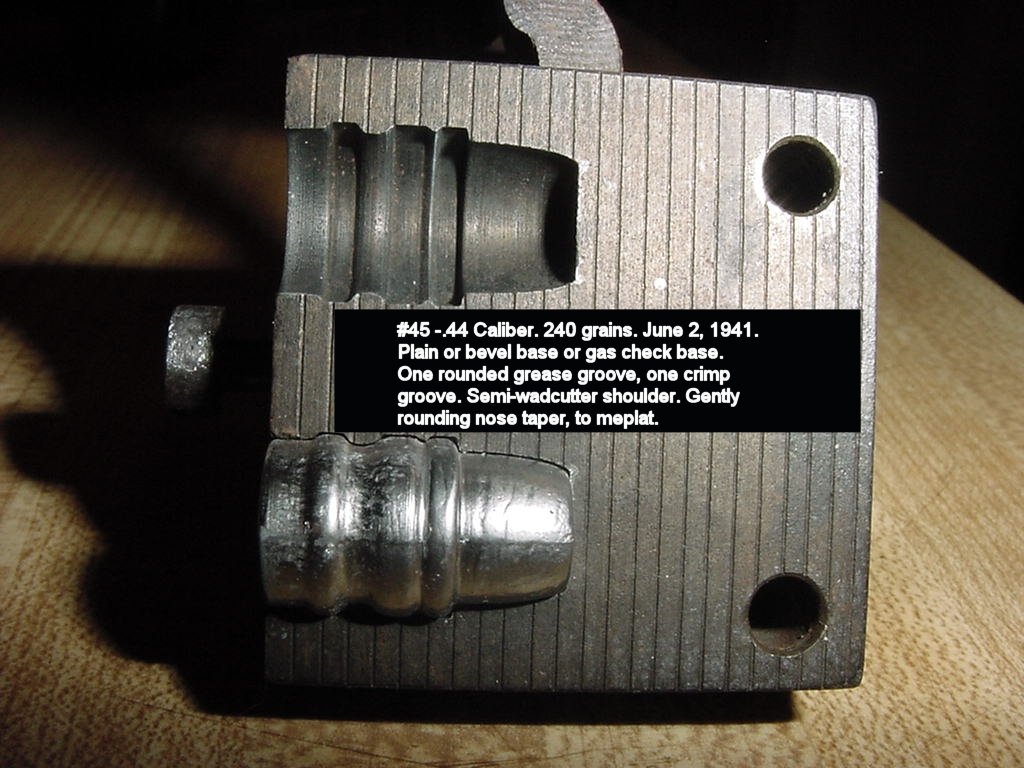

		.429/.431	240	PB	45		BB & GC;RGG;OCG;SWS;LM

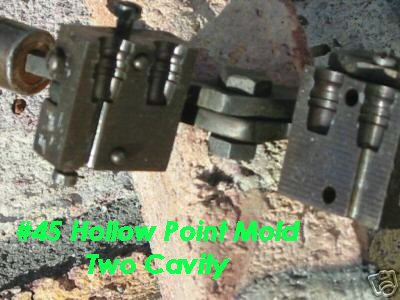

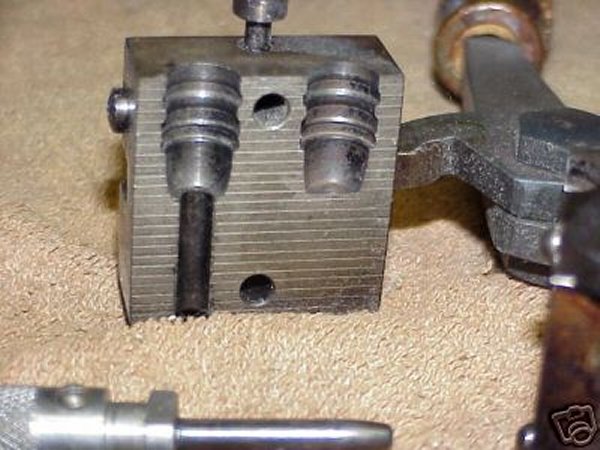

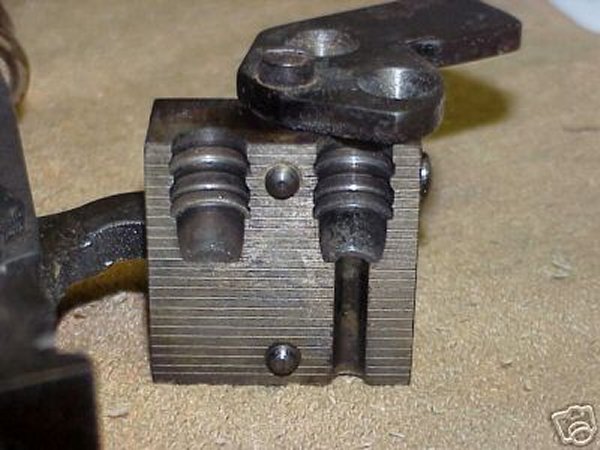

Hollow Point Version		.429/.431	240	PB	45 H.P Pic2		BB & GC; RGG;OCG;SWS;LM
		.429/.431	240		235		GC;RGG;SWS;LM
		.429/.431	135	PB	107C		RGG;OCG;SWS;LM

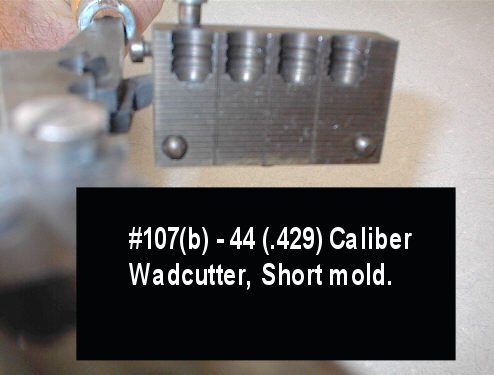

		.429/.431	185	PB	107B		RGG;OCG;SWS;LM
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
44		.429/.431	245	PB	107A		RGG;OCG;SWS;LM

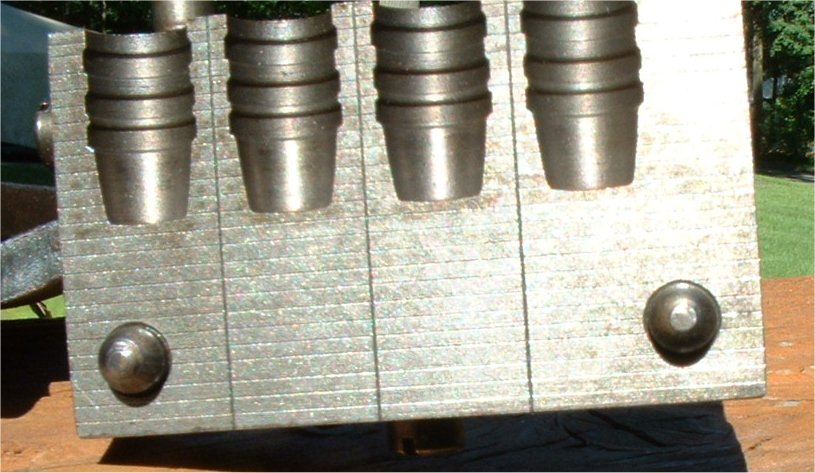

		.429/.431	225	PB	140PB		SGG;OCG;SWS;LM
		.429/.431	250		140GC		SGG;OCG;SWS;LM
		.429/.431	225	PB	521PB		RGG;OCG;SWS;LM
		.429/.431	250		521GC		RGG;OCG;SWS;LM

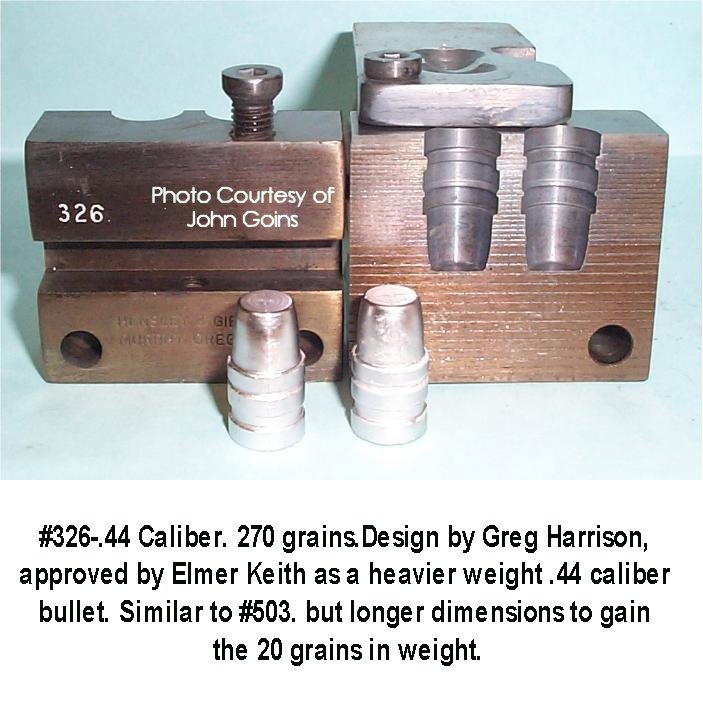

		.429/.431	270	PB	326		SGG;OCG;SWS;LM

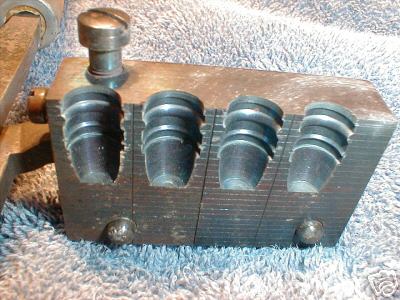

KEITH STYLE Nose		.429/.431	250	PB	243		SGG;OCG;SWS;LM
		.429/.431	280	PB	367		RGG;OCG;LM
Special Combo Mould		.429/.431	250/290	PB	503S Pic2		SGG;OCG;SWS;EB BAND;LM

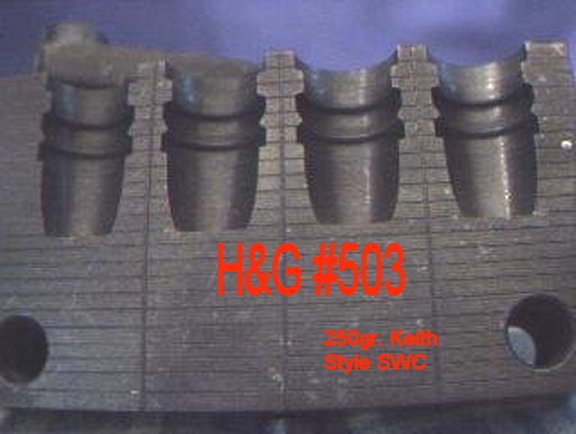

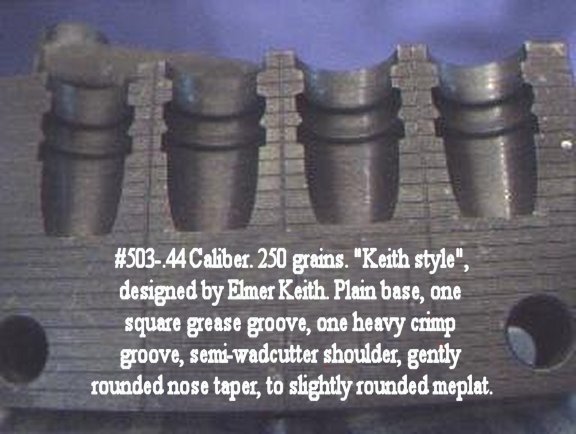

KEITH STYLE		.429/.431	250	PB	503		SGG;OCG;SWS;EB BAND;LM

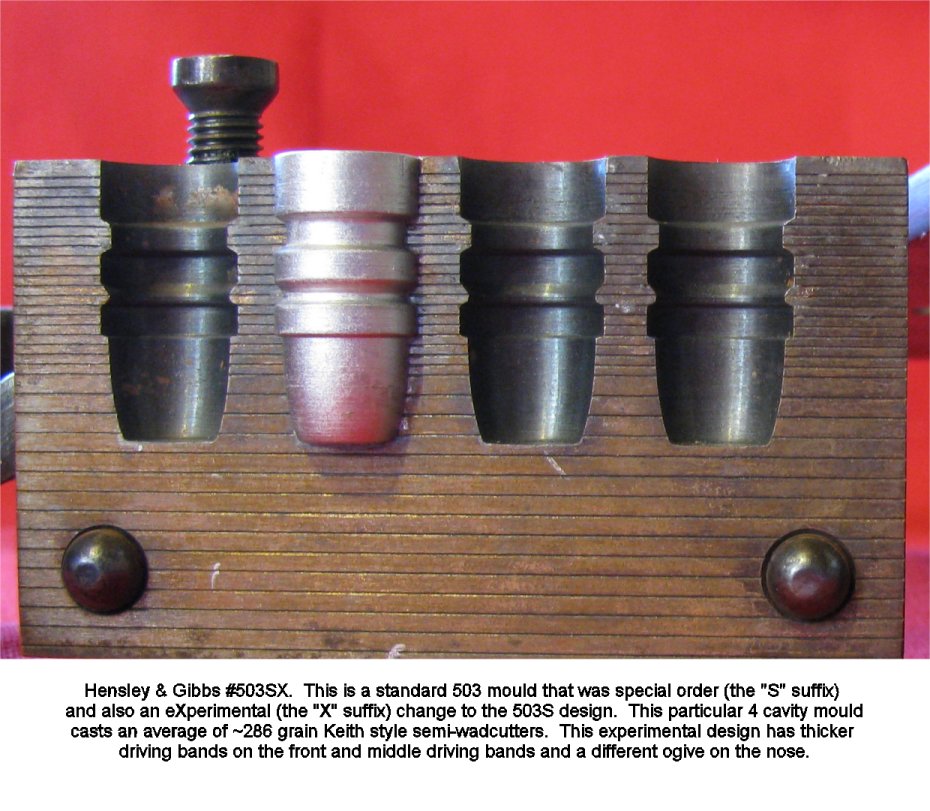

KEITH STYLE		.429/.431	286	PB	503SX		SGG;OCG;SWS;EB BAND;LM
		.429/.431	300	BB	327		RGG;OCG;MM

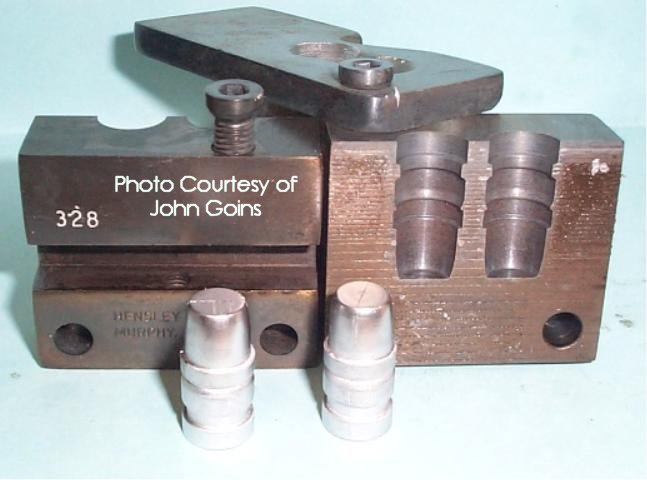

		.429/.431	300	PB	328		SGG;SWS;LM
		.429/.431	300	BB	343		SGG;OCG;LM
		.429/.431	300	BB	369		SGG;OCG;LM

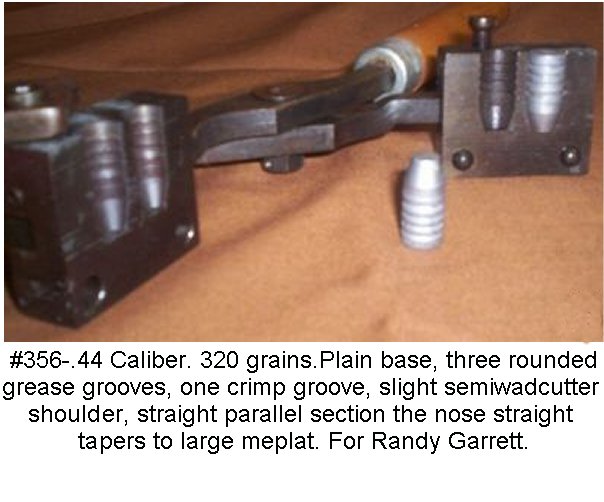

		.429/.431	320	PB	356		RGG;OCG;LM
		.429/.431	95		352-2		SGG;2DB;LM
Caliber		Diameter	Weight/Grains	Type	Mould Number		Comments
44		.429/.431	130		352-2GC		SGG;2DB;LM
		.429/.431	155		352-3		SGG;3DB;LM
		.429/.431	195		352-3GC		SGG;3DB;LM
		.429/.431	240	PB	352-4		SGG;4DB;LM
		.429/.431	280	PB	352-4GC		SGG;4DB;LM
		.429/.431	335	BB	352-5		SGG;5DB;LM
		.429/.431	255	PB	379-3GC		SGG;3DB;OCG;LM
		.429/.431	300	PB	379-4GC		SGG;4DB;OCG;LM
		.429/.431	335	PB	379-5		SGG;5DB;OCG;LM
45 AUTO		.452	155	PB	358PB		RGG;SWS;SM
		.452	155	BB	358BB		RGG;SWS;SM

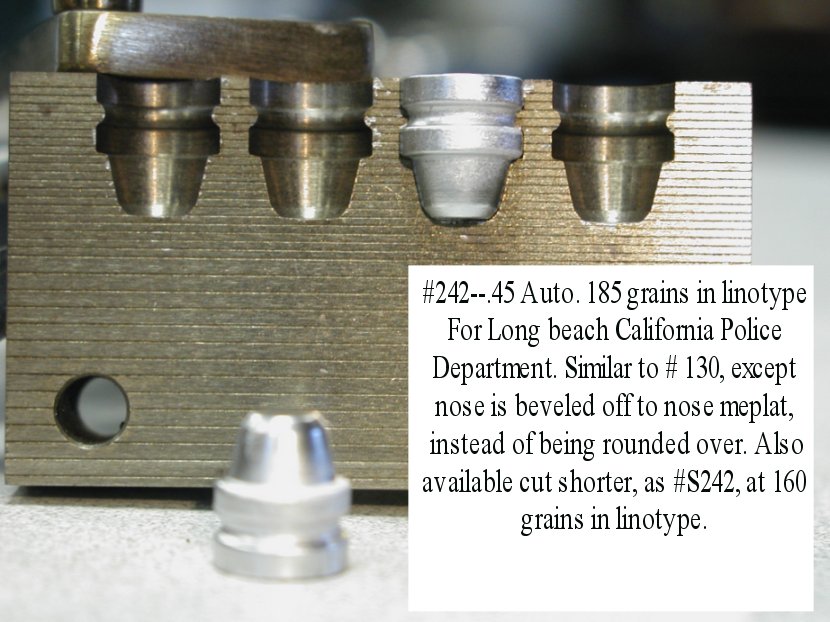

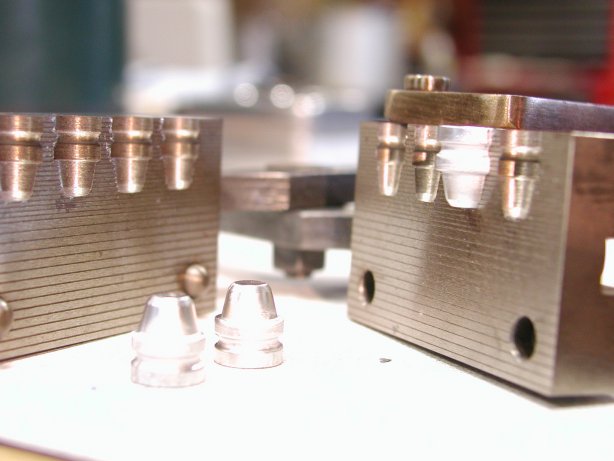

		.452	PIC	PB	S242		RGG;SWS;MM

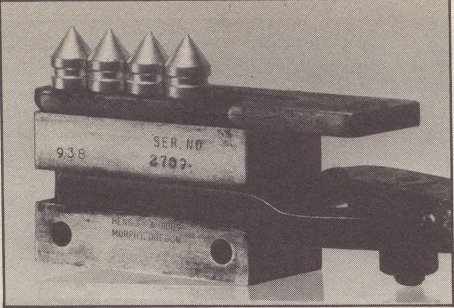

		.452	170	PB	938		SGG
		.452	172	PB	229		RGG;SWS

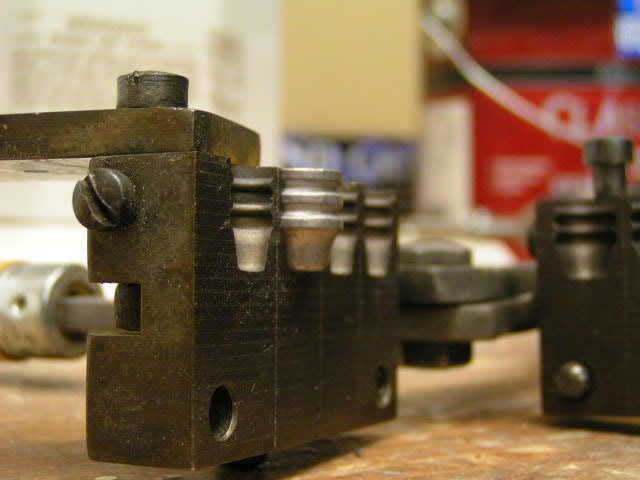

Same as #130 w/ 2 Grease Grooves		.452	185	PB	163		RGG;LM;
		.452	180	PB	293		RGG;SWS;LM
		.452	180	PB	337		RGG;SWS;MM

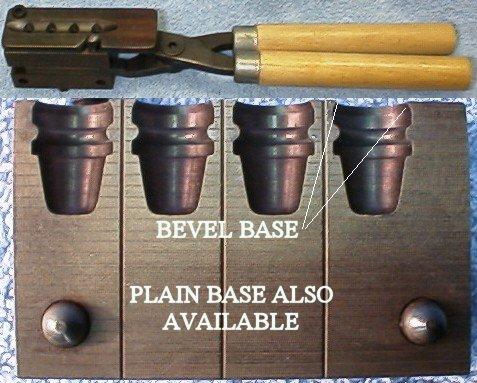

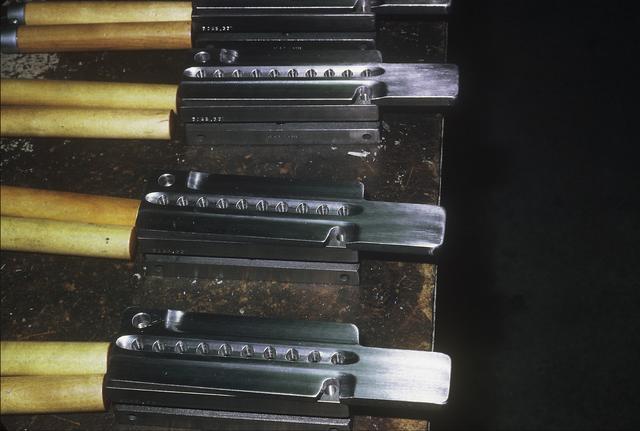

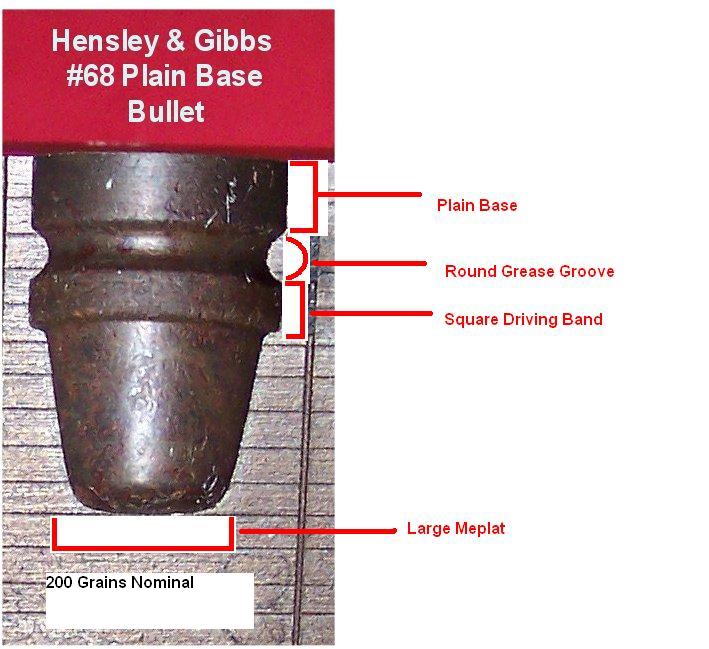

.		.452	200	P/BB	68 Pic 2		BB/PB;RGG;SWS;MM

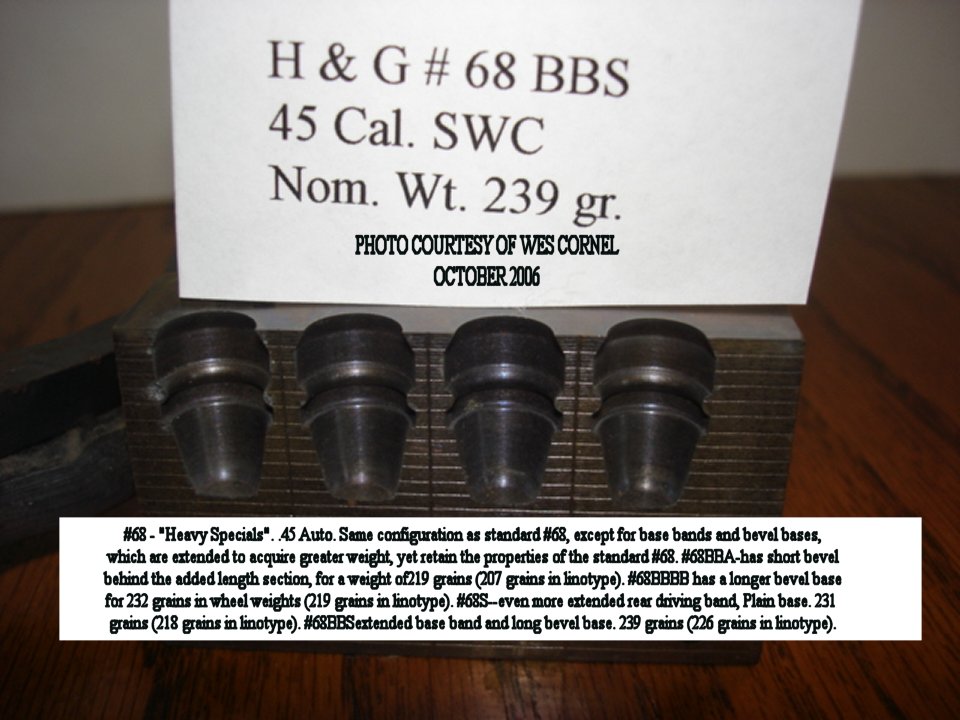

#68 very popular mould.  Bullet mould has many variations from standard.  Special Weights include: 219gr, 232gr, 231gr,239gr.  #68 most common in 4 cavity. Made in Plain & Bevel base.

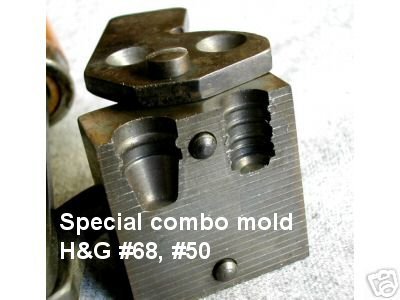

Special Combo Mould	.452		200	P/BB		68/50	Combo Mould  -- BB/PB;RGG;SWS;MM
	.452		219	BB		68BBA	SBB;207GR LINO;RGG;EB;SWS;MM
	.452		232	BB		68BBB	LBB;219 LINO;RGG;EB;SWS;MM

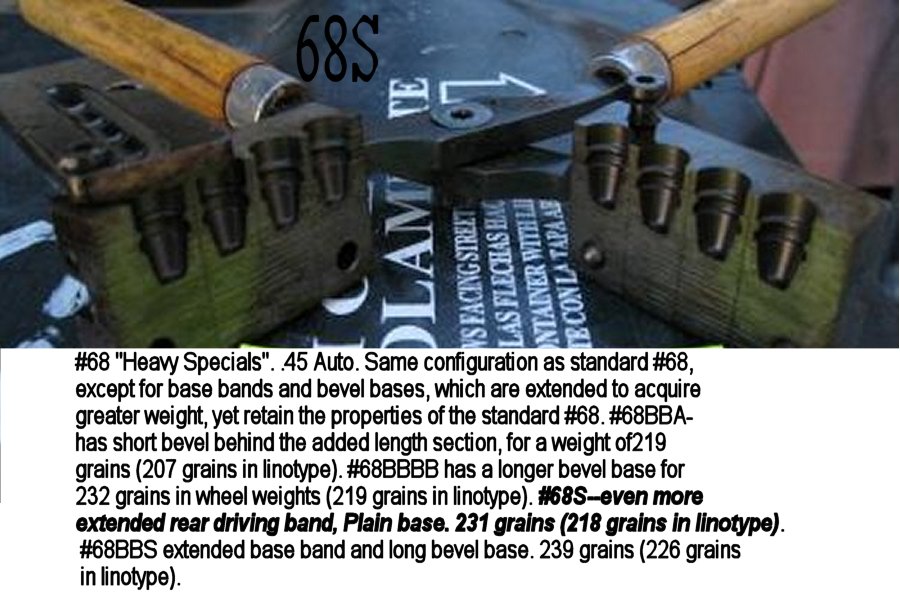

	.452		231	PB		68S	218 GR. LINO;RGG;EB;SWS;MM

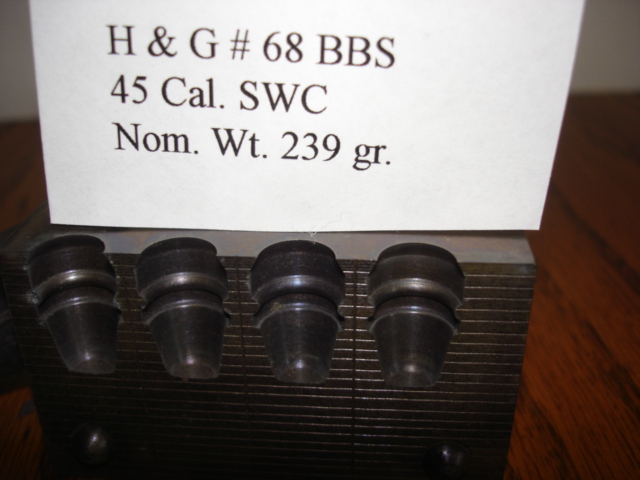

	.452		239	BB		68BBS	LBB;226GR. LINO;RGG;EB;SWS;MM
	.452		200	PB		249	RGG

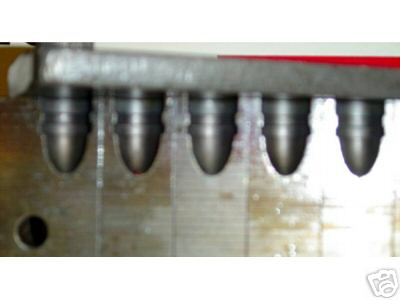

	.452		200	BB		265	SGG;SWS

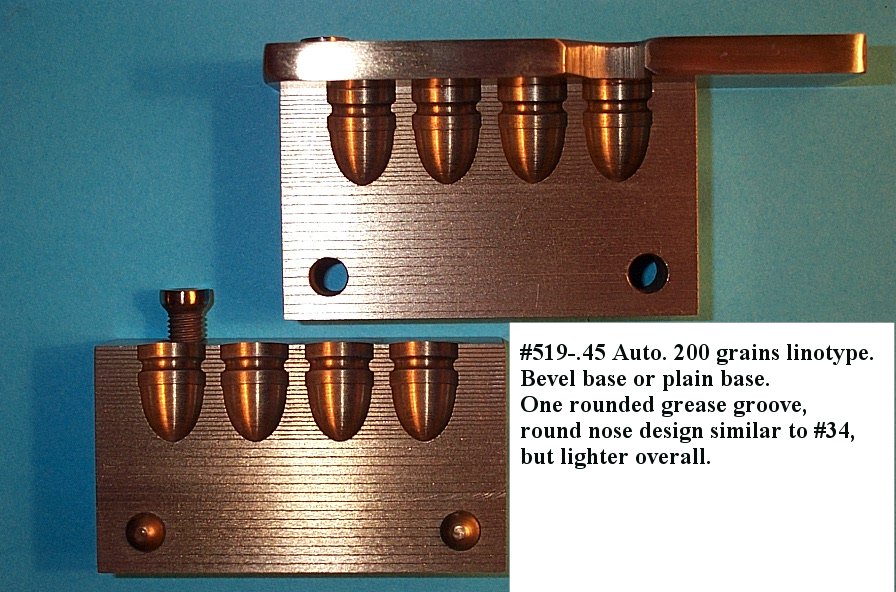

Same as #34, but 200 gr. Vs 225gr.	.452		200	BB		519	Available with PB; RGG
Caliber	Diameter		Weight/Grains	Type		Mould Number	Comments

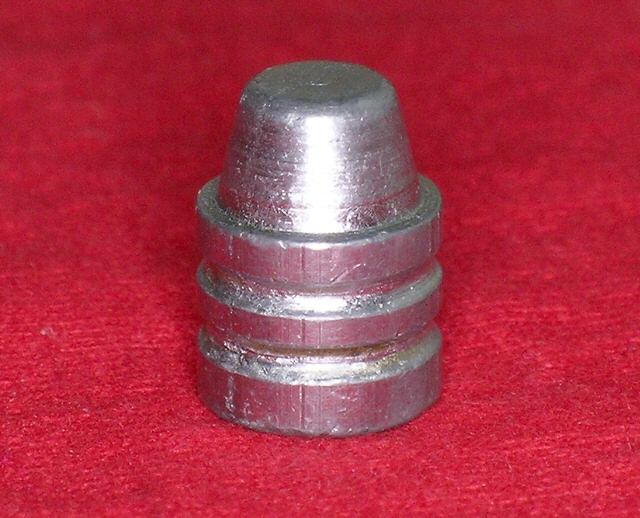

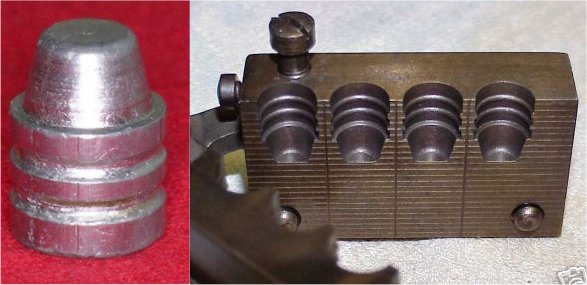

45 AUTO	.452		215	PB		78	BB;RGG;SWS;LM

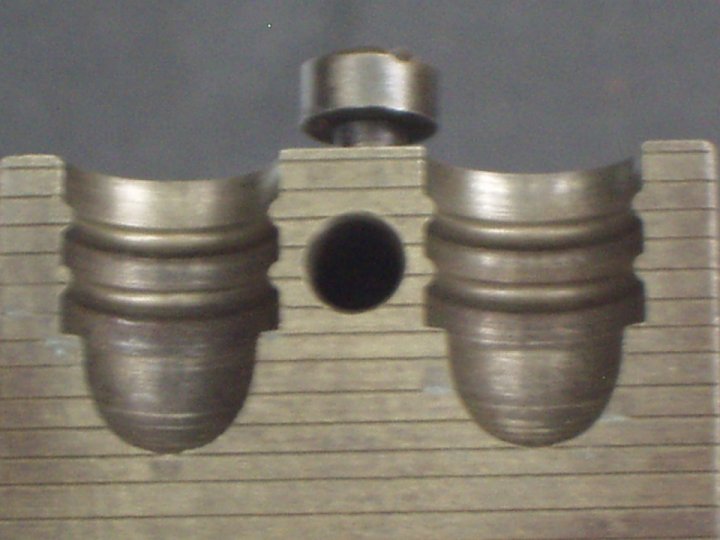

	.452		215	PB		118	BB;RGG;SWS
	.452		215	BB		351	RGG;SWS;LONG TAPERED BOATTAIL;MM
	.452		220	PB		294	RGG;SWS;LONG TAPERED BOATTAIL;MM

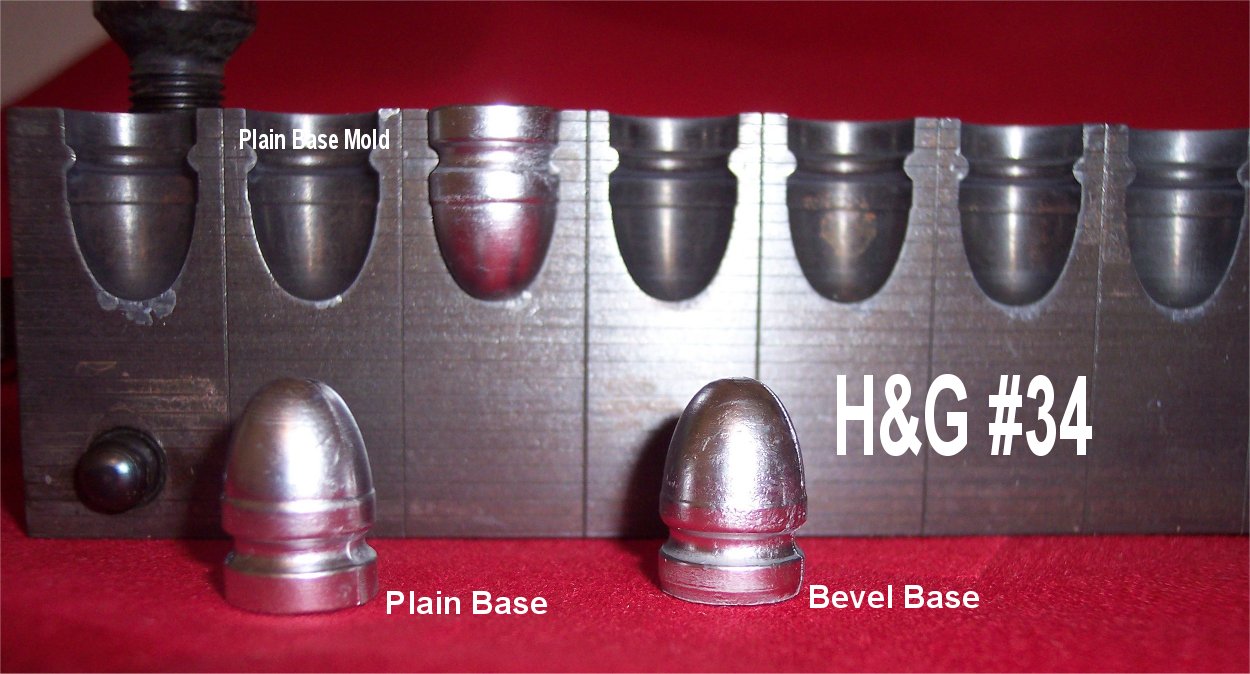

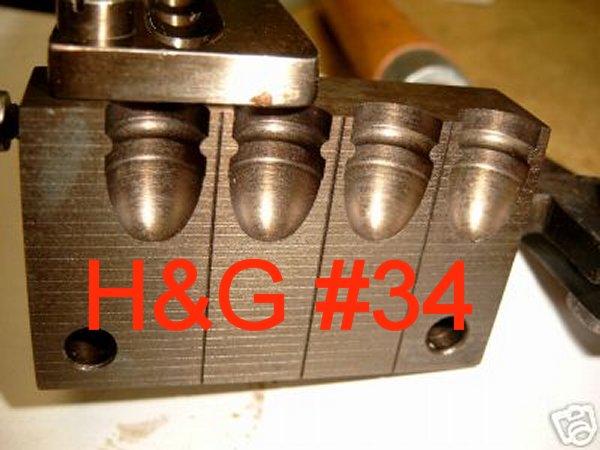

USGI BALL PROFILE	.452		225	BB		34	BB;RGG
USGI BALL PROFILE	.452		230	PB		34	PB;RGG
	.452		230	PB		292	BB;SGG
	.452		240	PB		329	RGG;SWS;LM

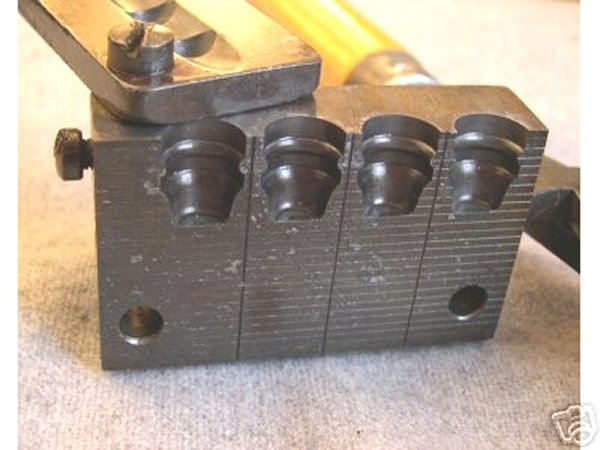

	.454/.452		185 Pic#3	PB		130	BB;RGG;LM;RSWS
Caliber	Diameter		Weight/Grains	Type		Mould Number	Comments
45 L.C./45 A.R.	.454/.452		160	PB		193	RGG;OCG;LM
	.454/.452		195	PB		312	SGG;OCG
	.454/.452		200	PB		21	RGG;OCG;MM

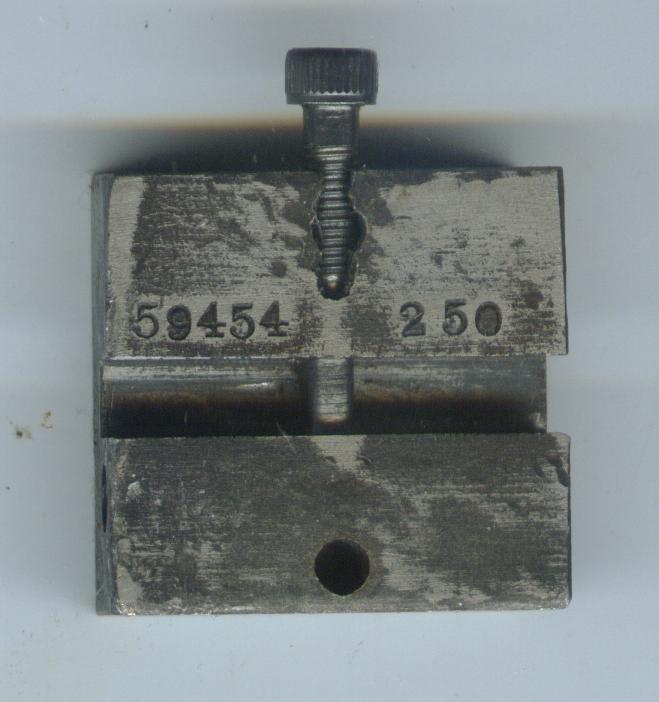

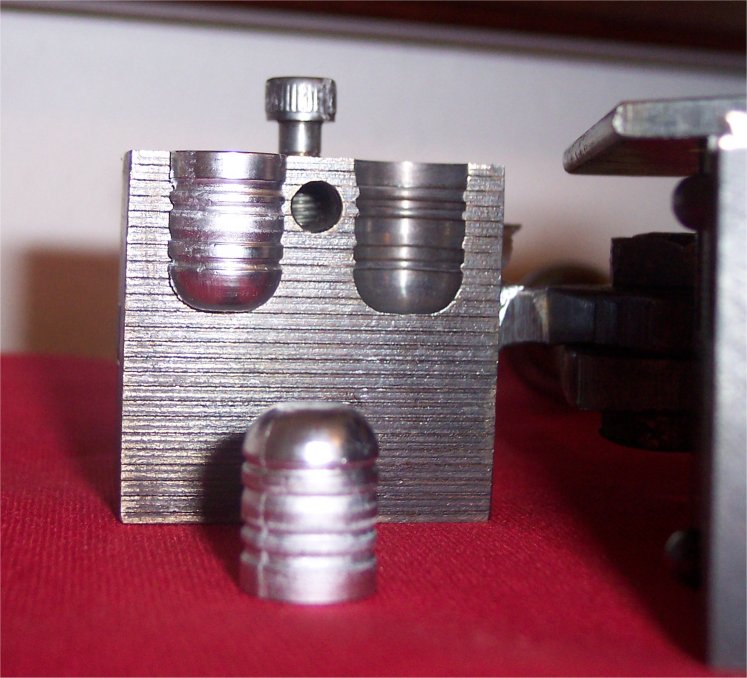

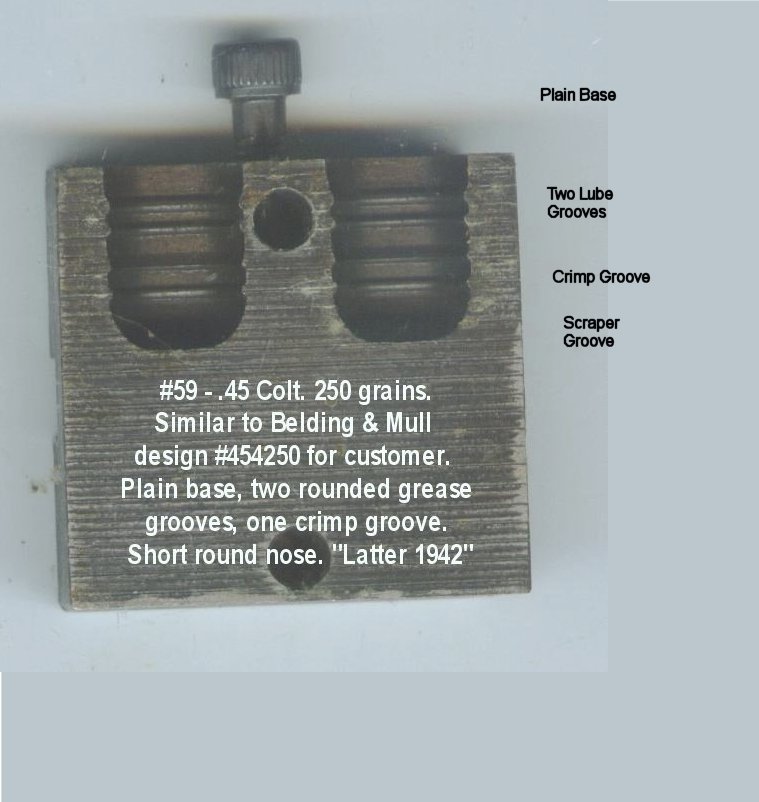

	.454/.452		250	PB		59 Pic2	RGG;OCG;LM
	.454/.452		200	PB		155	RGG;OCG;SWS;LM

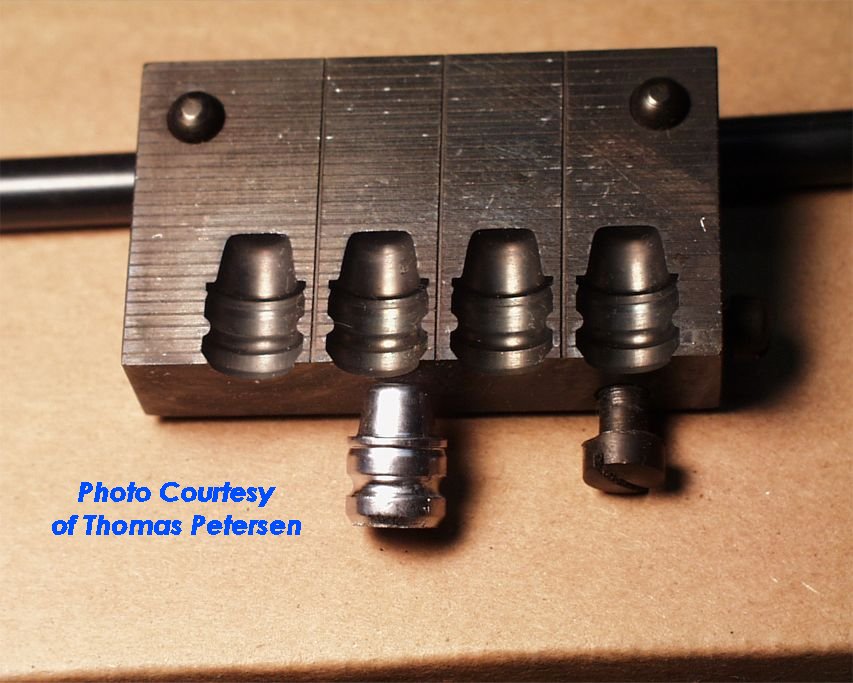

	.454/.452		215	BB		529	RGG;OCG;SWS;LM

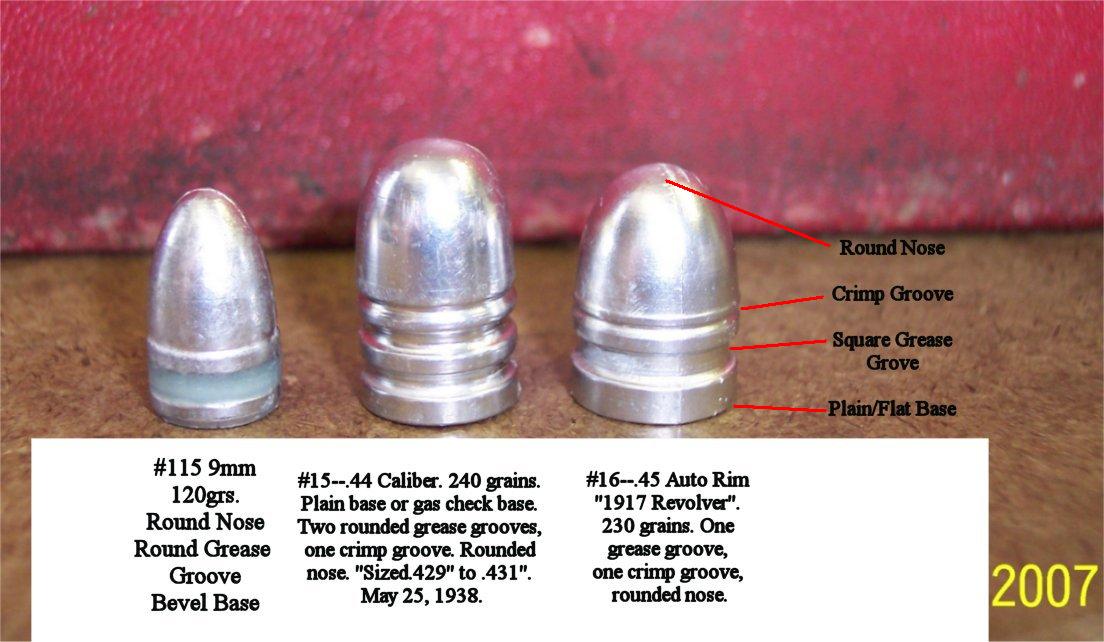

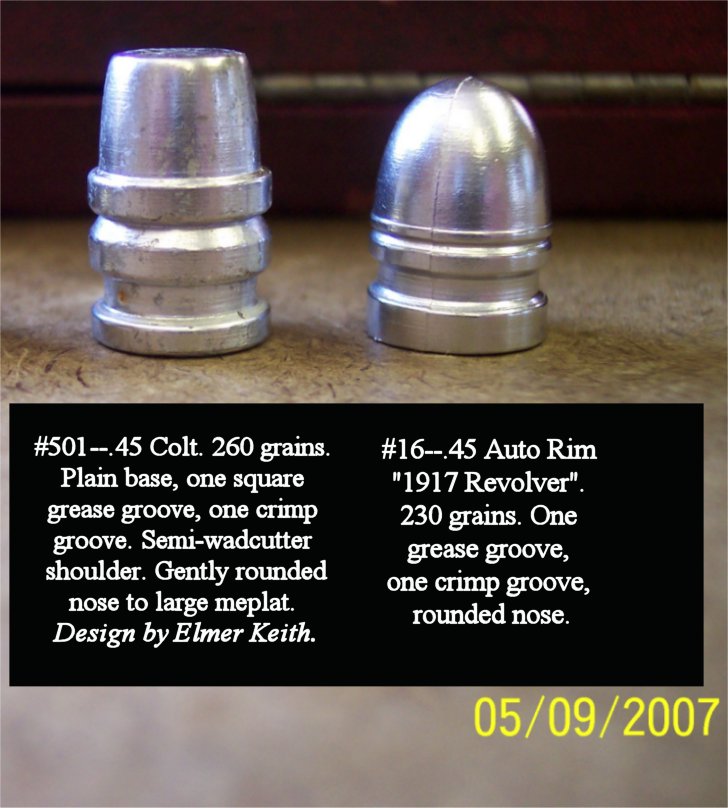

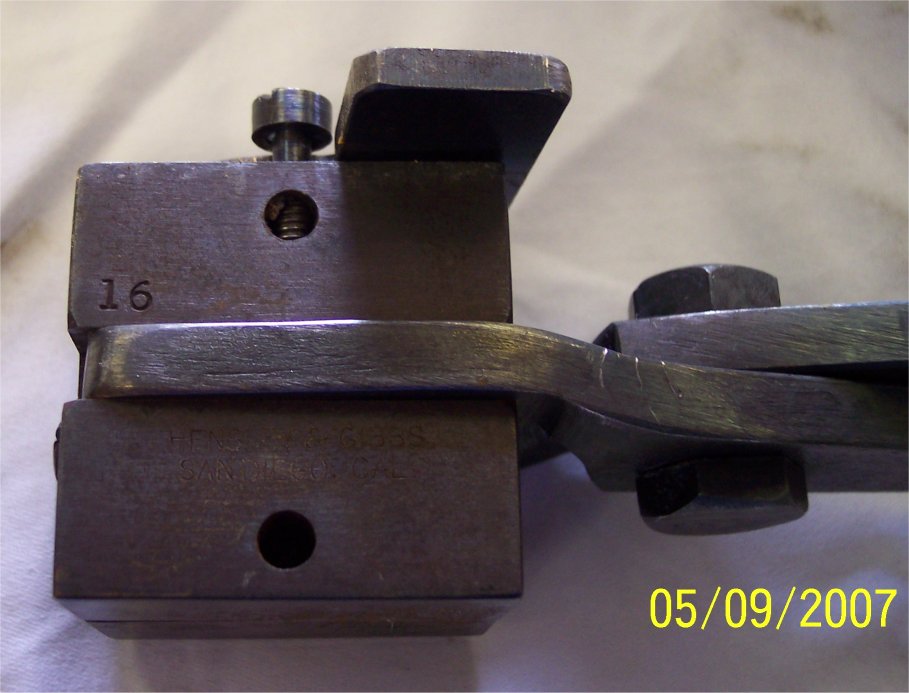

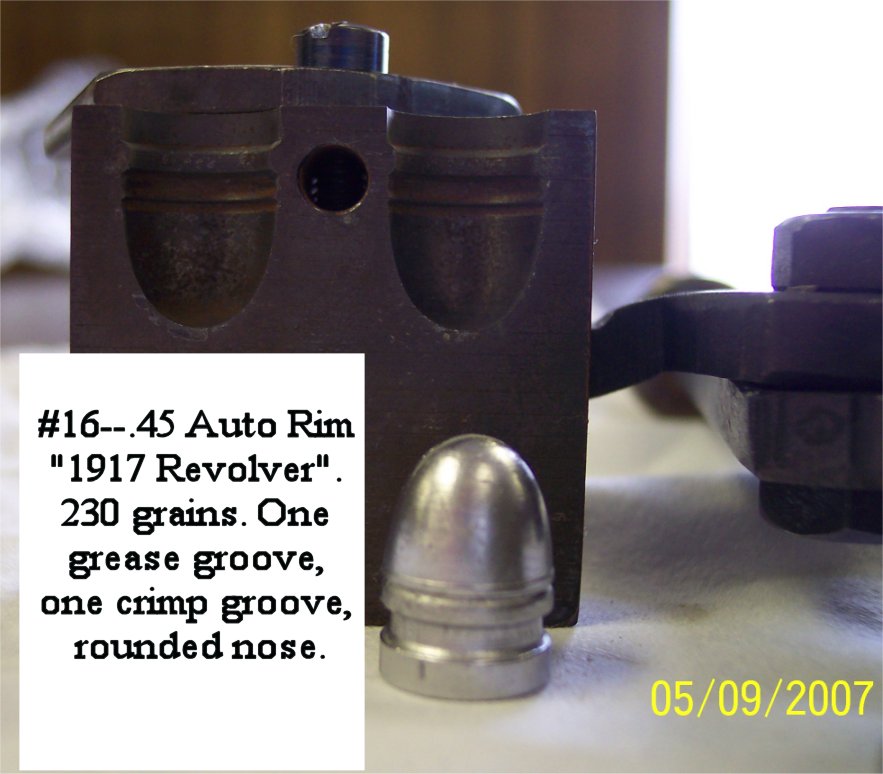

	.454/.452		230	PB		16 Pic 2 Pic 3	RGG;OCG

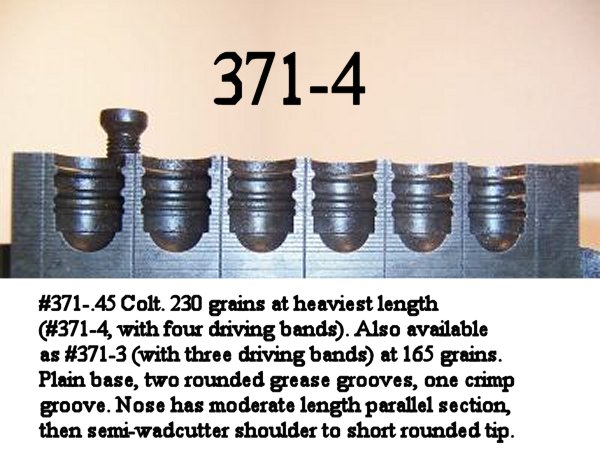

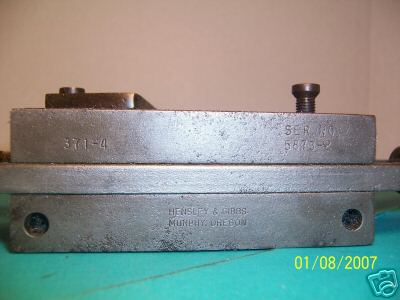

	.454/.452		230	PB		371	RGG;OCG;SWS

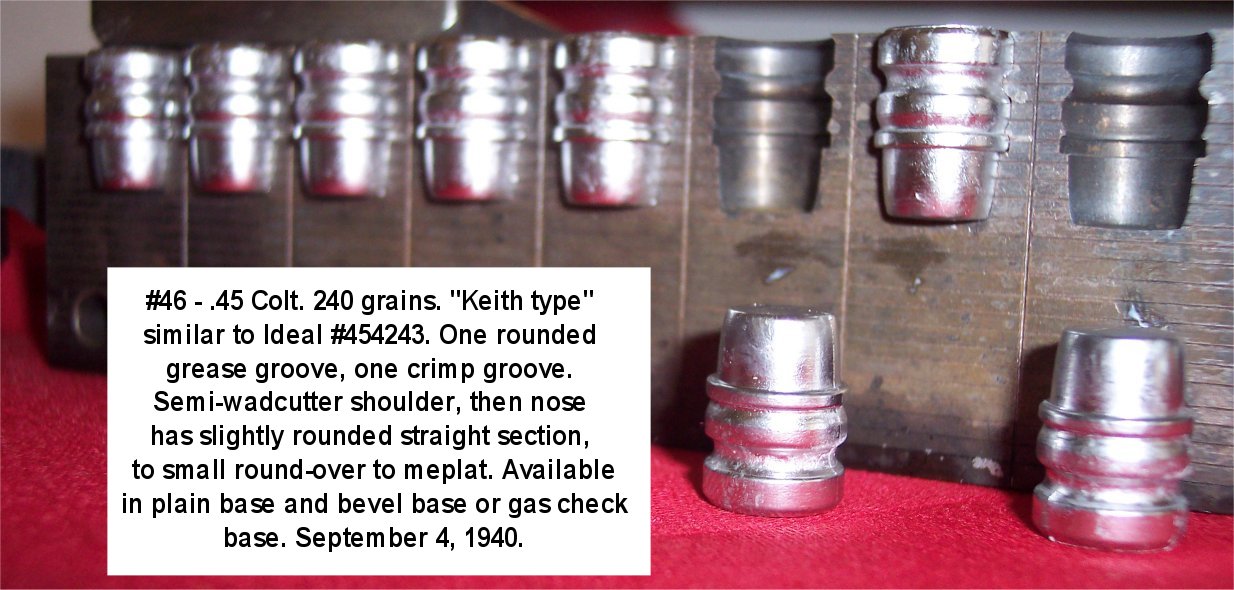

	.454/.452		240	PB		46	BB AND GC; RGG; OCG; SWS; LM

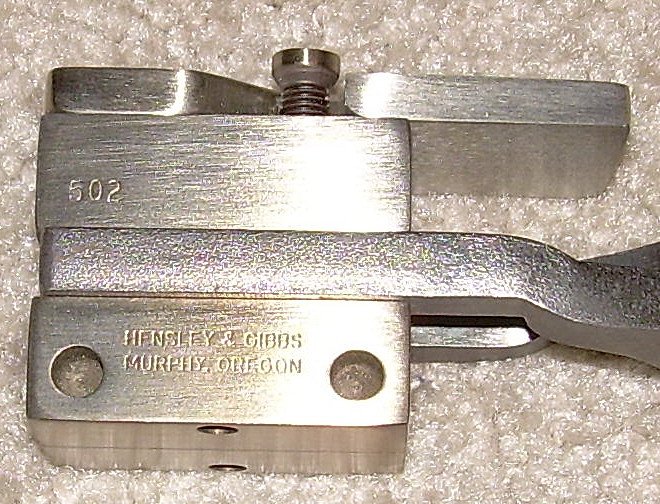

	.454/.452		240 Pic 2	PB		502 Pic2	SGG;OCG;SWS;LM

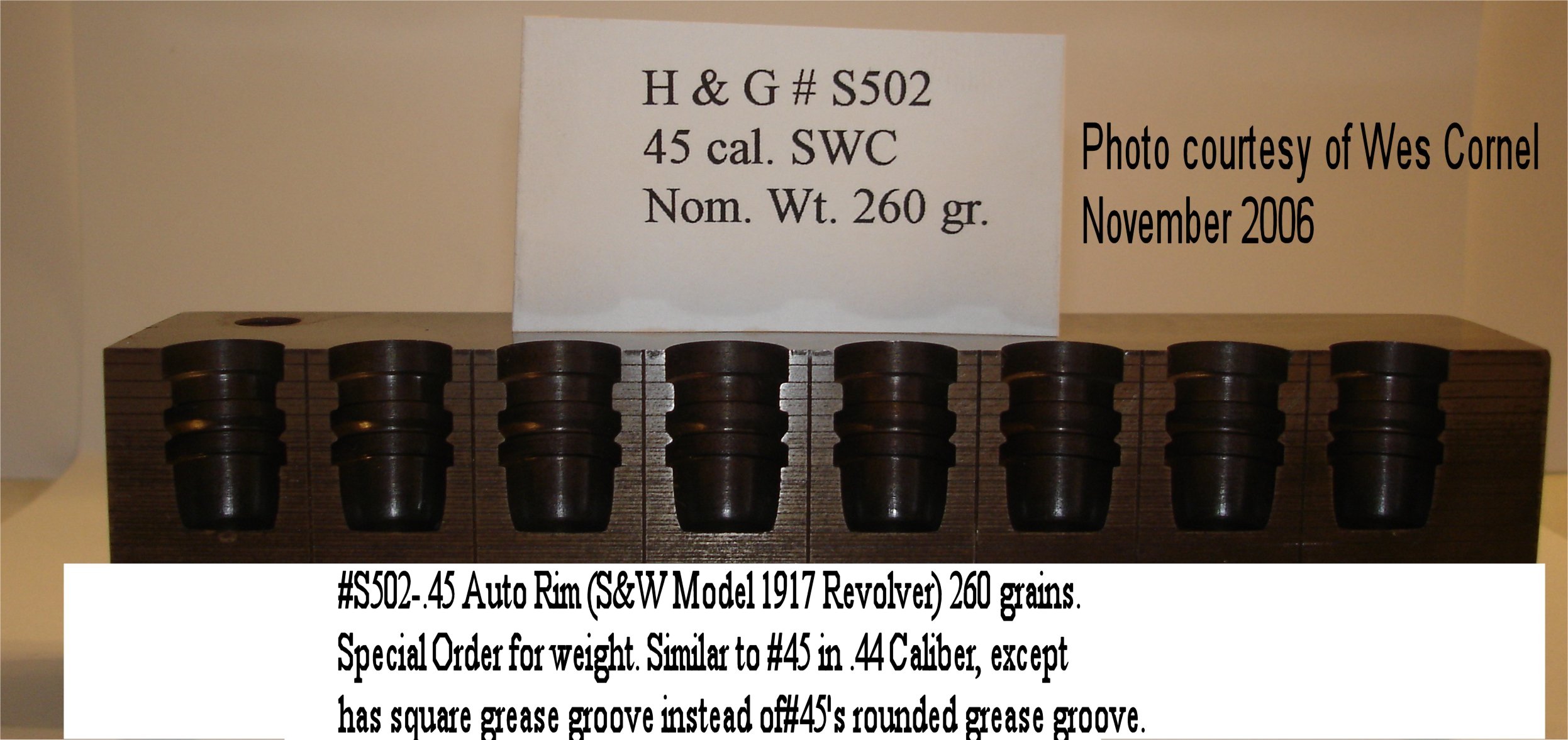

Special Order 502	.454/.452		260	PB		S502	SGG;OCG;SWS;LM

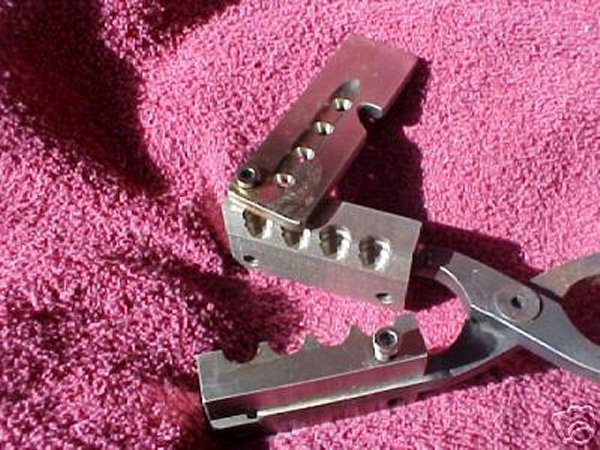

	.454/.452		250	PB		22 Pic2	Pic2 Pic3 RGG;MM
	.454/.452		255	BB		387	RGG;OCG;LM
KEITH  STYLE	.454/.452		260	PB		501	SGG;OCG;SWS;LM
	.454/.452		265	BB		339	RGG;OCG;LM
454 CASULL	.4515		300	PB		338	SGG;OCG;SWS;LM
	.4515		219	PB		372-2GC	SGG;2DB;LM
	.4515		257	PB		372-3	SGG;3DB;LM
	.4515		290	PB		372-3GC	SGG;3DB;LM
	.4515		340	PB		372-4	SGG;4DB;LM
Rifle Moulds	Rifle Moulds		Rifle Moulds	Rifle Moulds		Rifle Moulds	Rifle Moulds

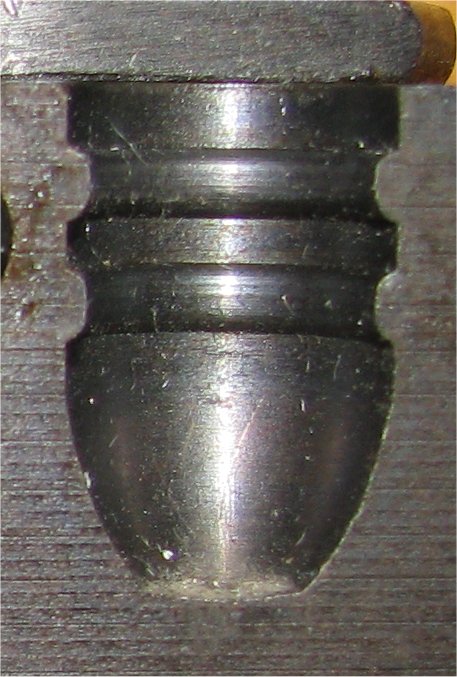

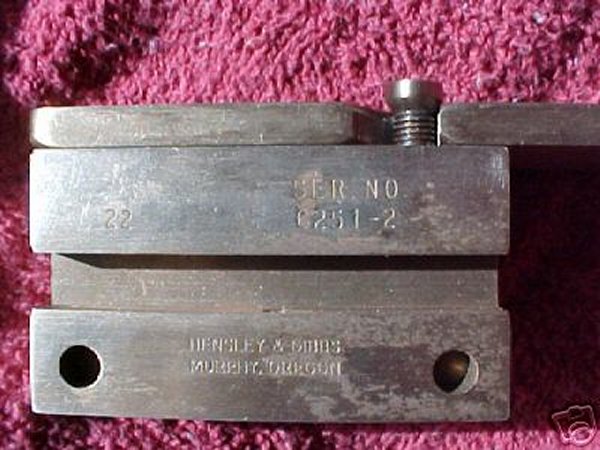

22	.223		45	GC		11 Pic2	Pic3 Pic4 Pic5

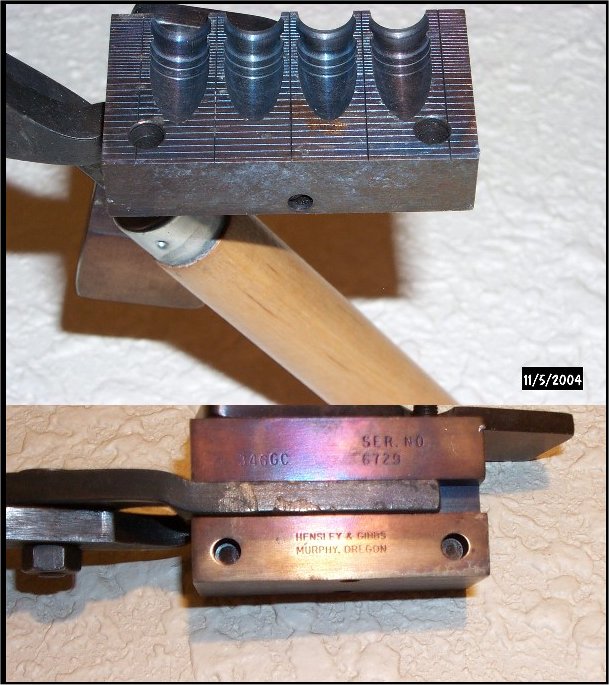

45-70			360	PB		346	RGG;OCG or TCG;SM
			380	BB		346	RGG;OCG or TCG;SM
			405	GC		346	RGG;OCG or TCG;SM
			410	PB		390	See Photo for Details
			550	PB		102	See Photo for Details
.25-35 Winchester	.251/.260		91	GC		122	See Photo for Details

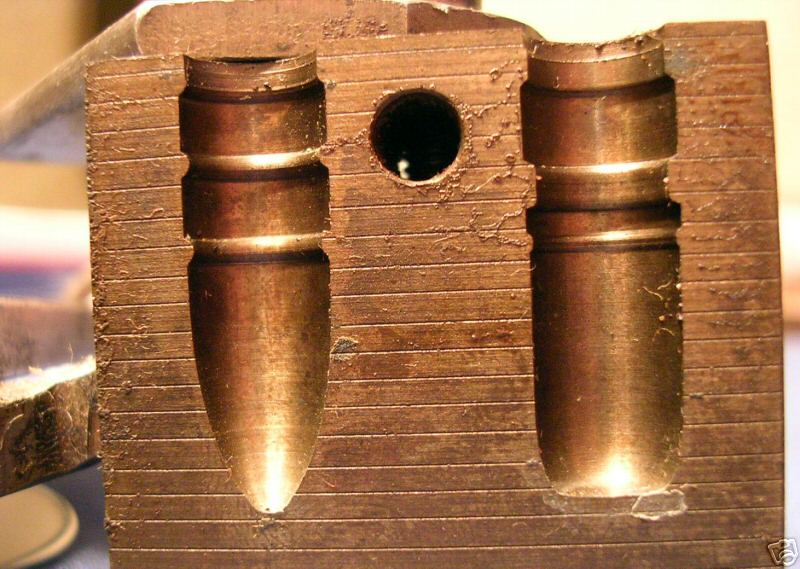

8MM RIFLE	.323		176	GC		76	?
8MM RIFLE (?)	.323 (?)		?	GC		114	No info on Mold 114 in ledger

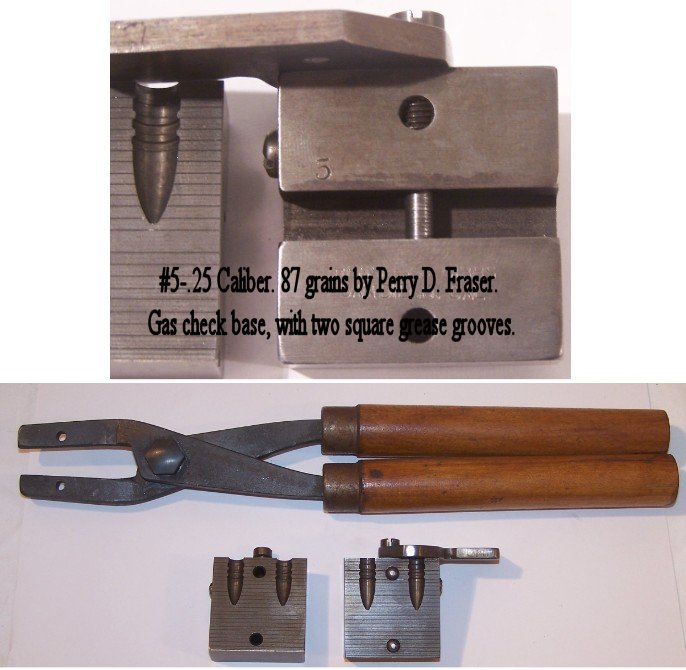

.25 Caliber	?		87	GC		5	See Photo for Details

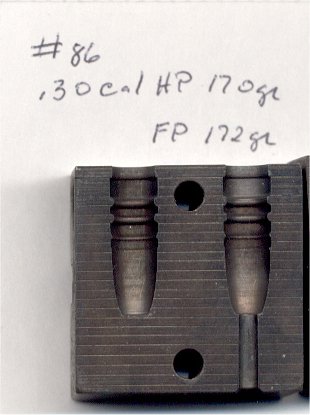

.30 Caliber (30-30)	.308/.311		170	GC		86 Pic 2	See Photo for Details

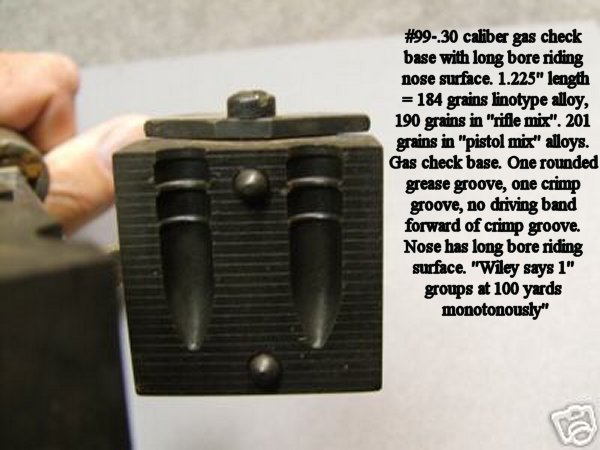

.30 Caliber	.308		184	GC		99 Pic2	See Photo for Details
.30 Caliber	.308		140	GC		33	See Photo for Details
.30 Caliber	.314		170	GC		20	See Photo for Details
.30 Caliber	.314		173			58	See Photo for Details
? Rifle	?		?	?		109	?

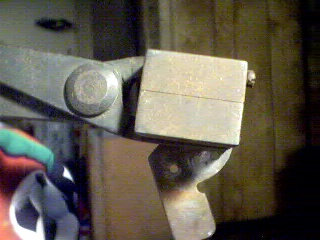

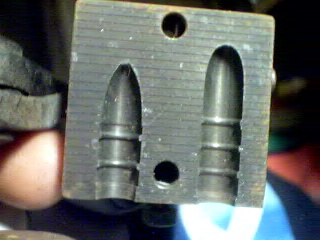

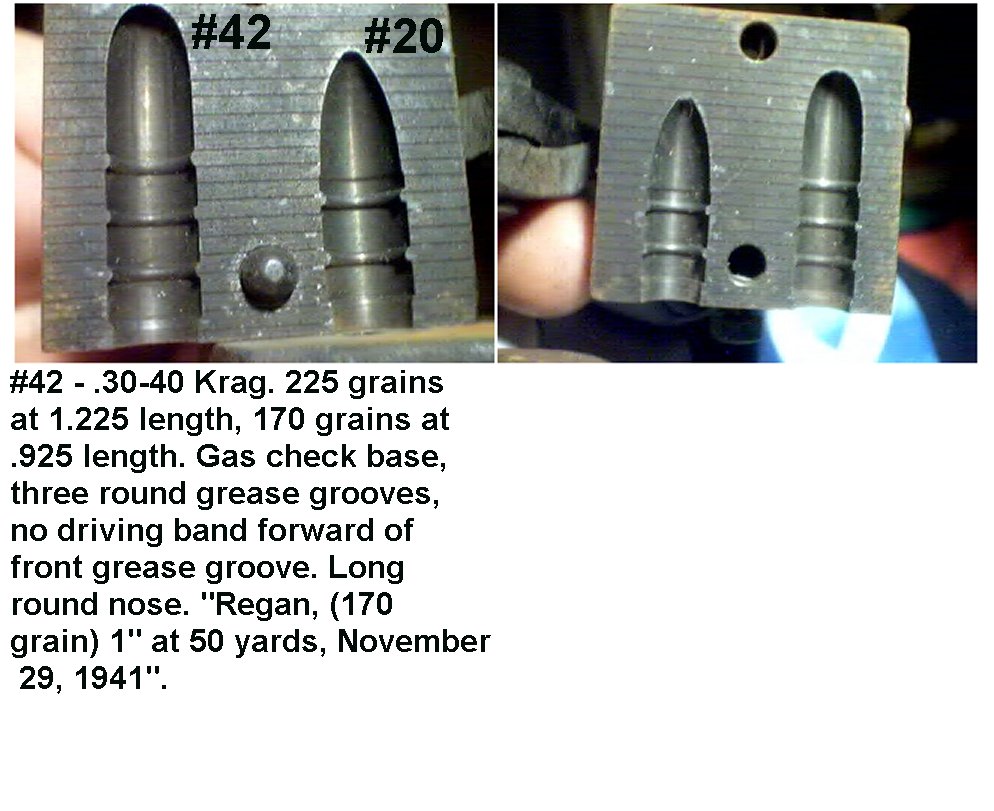

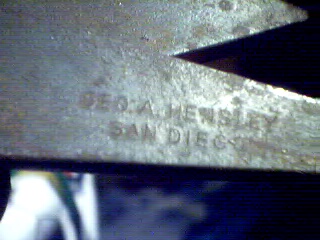

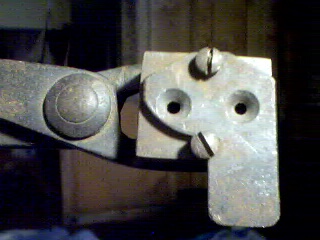

.30 Caliber (Krag)	.308		220	GC		42	1 2 3 4 30-40 Krag Mould

---

Email: tdugas@hotmail.com
